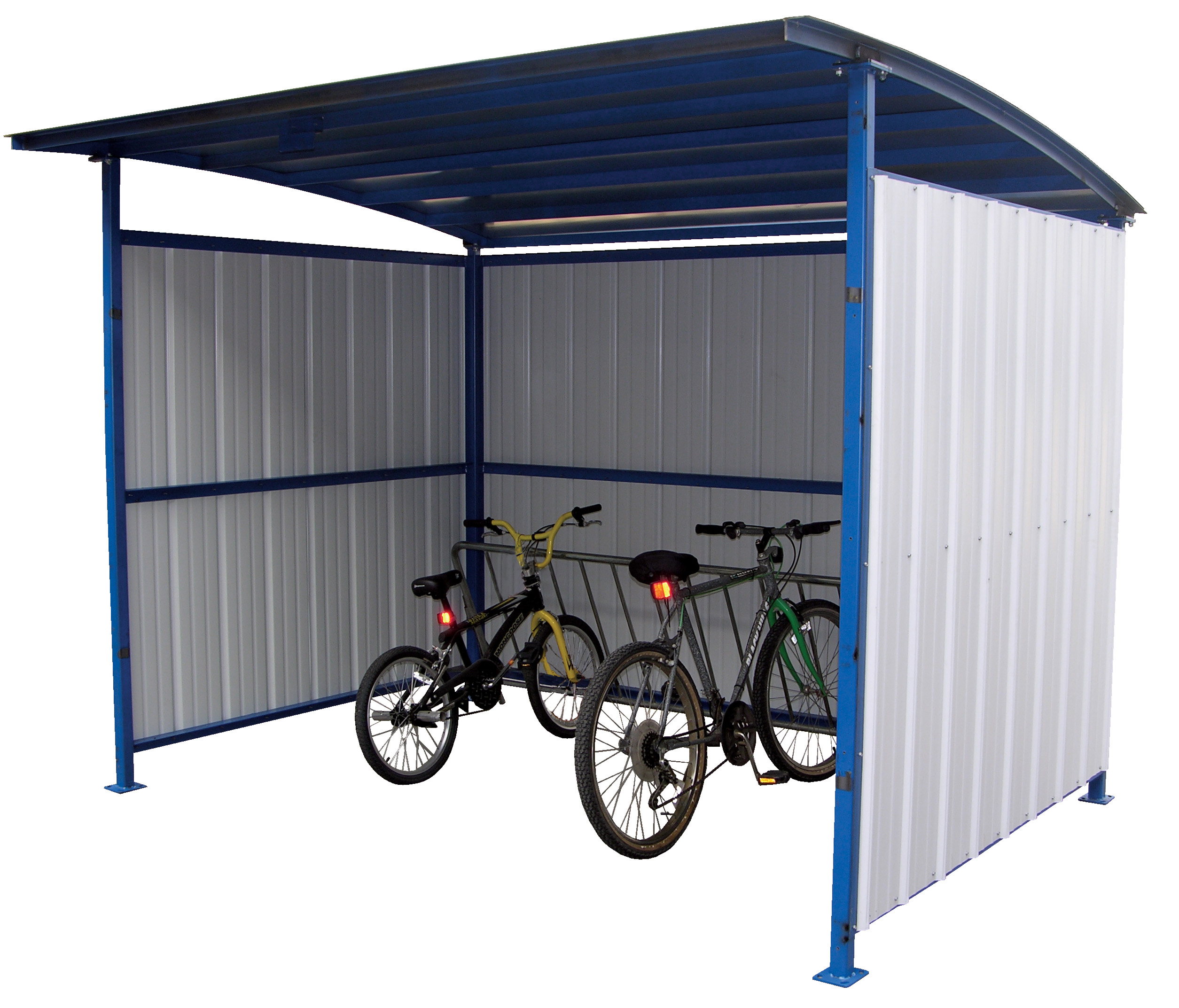

VESTIL MDS-96-BK Bicycle Shelter, Multi Duty, 95-1/2 x 120 x 90-1/16 Inch Size, Blue/White, Steel

Compatible Accessories:

• Vestil AS-125 and AS-125-4PK Anchor Bolts: They are required for installation in concrete.

Standards and Approvals:

• OSHA

Frequently Asked Questions:

Q. Is this bicycle shelter corrosion resistant?

A. Yes, Vestil MDS-96-BK multi-duty bicycle storage shelter features powder-coated finish for corrosion and weather resistance.

Q. Does this unit come pre-assembled?

A. No, the model comes in a knocked-down shipping method which means the product is delivered in parts and assembled at the site.

Q. What is the snow holding capacity of this shelter?

A. The steel roof of the shelter can hold snow up to 45 lb/sq.ft.

Q. What tools are required for assembling this shelter?

A.

• Two 9/16 inch wrenches
• 5/16 inch driver for cordless or corded drill
• Bubble level
• 10 ft tape measure
• Vice-grip

Q. How to assemble this Vestil MDS-96-BK bicycle storage shelter?

A.

• Lay out wall supports. The mounting plate's longer sides must be toed-in towards one another.
• Before you begin putting the self-tapping screws (that hold the side walls) to the wall supports, measure 4 inches up from the bottom of the mounting pads.
• Make sure the screws securing the siding to the frame are facing the bottom side of the wall while installing the centre angle iron rail on the side walls & back wall.
• Using a 4-inch spacer, elevate the back wall panel and attach it to the wall supports.
• Install at least 1-piece bolt with 2 pieces of 3/8 inch washers per support on each side of the mounting pads.
• Insert 1 piece of a 9-inch-long spacer for both sides.
• From the front of the shed, lift the opposite side of the roof panel and install it.
• Install 2-piece bolts and 2-piece nuts to each side of the roof with 8-piece washers (above & below the mounting pad).
• To secure the shed to the ground, use the mount pad holes.
• Bike rail brackets should be installed at each corner, with the solid post on the left facing the back.
