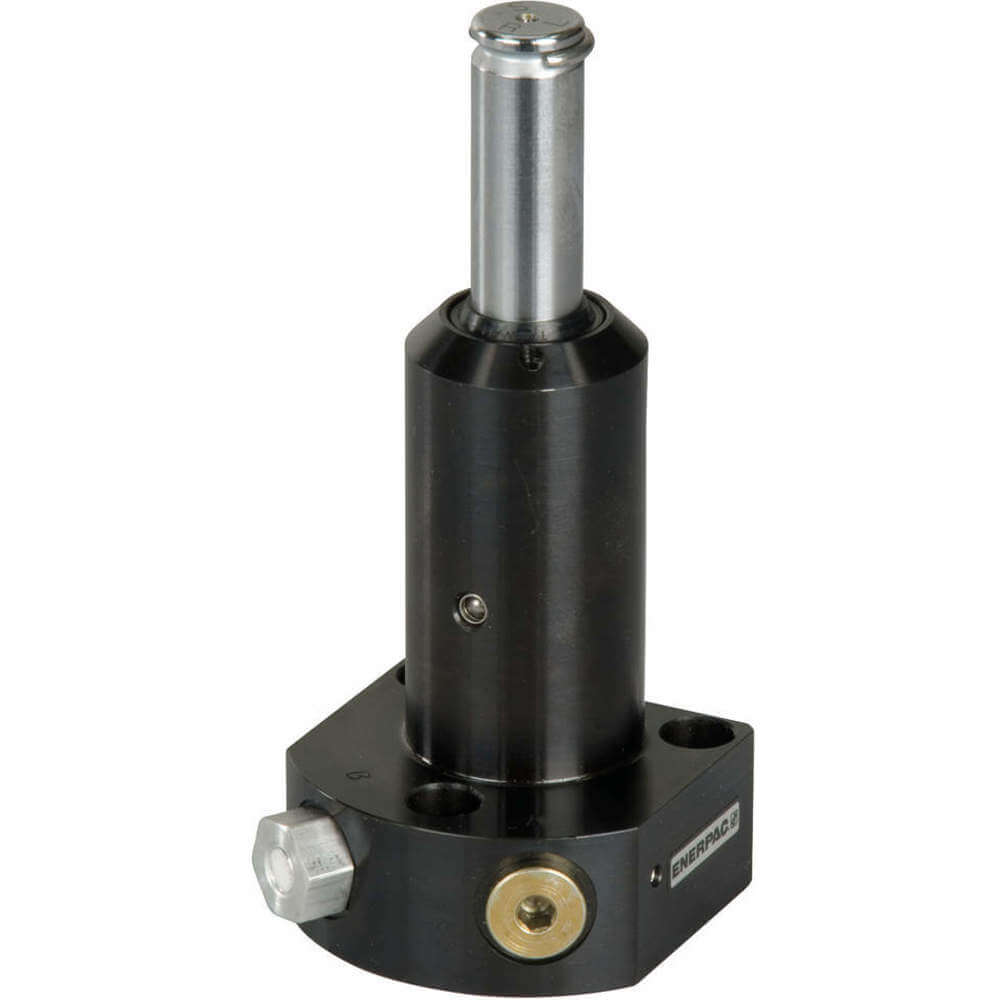

| Item | Clamp Arm |
| Clamping Force | 1100 lbs. |
| Clamping Stroke | 0.39" |
| Cylinder Effective Area Clamp | 0.28 sq. in. |
| Cylinder Return Type | Single Acting |
| Dimension A | 5.33" |
| Dimension C | 3.68" |
| Dimension C1 | 4.57" |
| Dimension D | 1.37" |
| Dimension D1 | 2.13" |
| Dimension D2 | 2.25" |
| Dimension F | 0.63" |
| Dimension G | SAE #4 |
| Dimension H | 0.55" |
| Dimension K | 0.76" |
| Dimension N | 0.75" |
| Dimension P | 1.58" |
| Dimension Q | 1/3"-18 UNC |
| Dimension S | 1.614" |
| Dimension T | 1.89" |
| Dimension U | 1.97" |
| Dimension V | 0.27" |
| Dimension X | 0.565" |
| Material | Steel |
| Max. Oil Flow | 25 cu. in./min. |
| Max. Operating Pressure | 5000 psi |
| Min. Operating Pressure | 500 psi |
| Mounting Type | Lower Flange |
| Number Of Bolts | 3 |
| Oil Capacity Clamped | 0.25 cu. in. |
| Rotation | Left |
| Stroke | 0.89" |
| Swing Angle | 30 Deg., 60 Deg. |
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 24.38 |
| Ship width (cm) | 9.4 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Clamping Force | Clamping Stroke | Cylinder Effective Area Clamp | Cylinder Effective Area Unclamp | Cylinder Return Type | Dimension A | Dimension C | Dimension C1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SLLS21 | 475 lbs. | 0.32" | 0.12 sq. in. | - | Single Acting | 4.41" | 3.13" | 3.78" | £609.55 | |
 |
SLLS121 | 2400 lbs. | 0.5" | 0.63 sq. in. | - | Single Acting | 6.75" | 4.46" | 5.56" | £681.26 | |
 |
SLLD21 | 500 lbs. | 0.32" | 0.12 sq. in. | 0.24 sq. in. | Double Acting | 4.41" | 3.13" | 3.78" | £596.60 | |
 |
SLLD51 | 1250 lbs. | 0.39" | 0.28 sq. in. | 0.59 sq. in. | Double Acting | 5.33" | 3.68" | 4.57" | £631.46 | |
 |
SLLD121 | 2600 lbs. | 0.5" | 0.63 sq. in. | 1.23 sq. in. | Double Acting | 6.75" | 4.46" | 5.56" | £741.02 | |
 |
SLLD351 | 7600 lbs. | 0.63" | 1.92 sq. in. | 3.68 sq. in. | Double Acting | 7.77" | 4.91" | 6.19" | £1,199.18 |
