ENERPAC SLLD51 Swing Clamp, 1250 lbs Force, Double-Acting, Left Turning, Lower Flange | AE6TDE 5UWX0

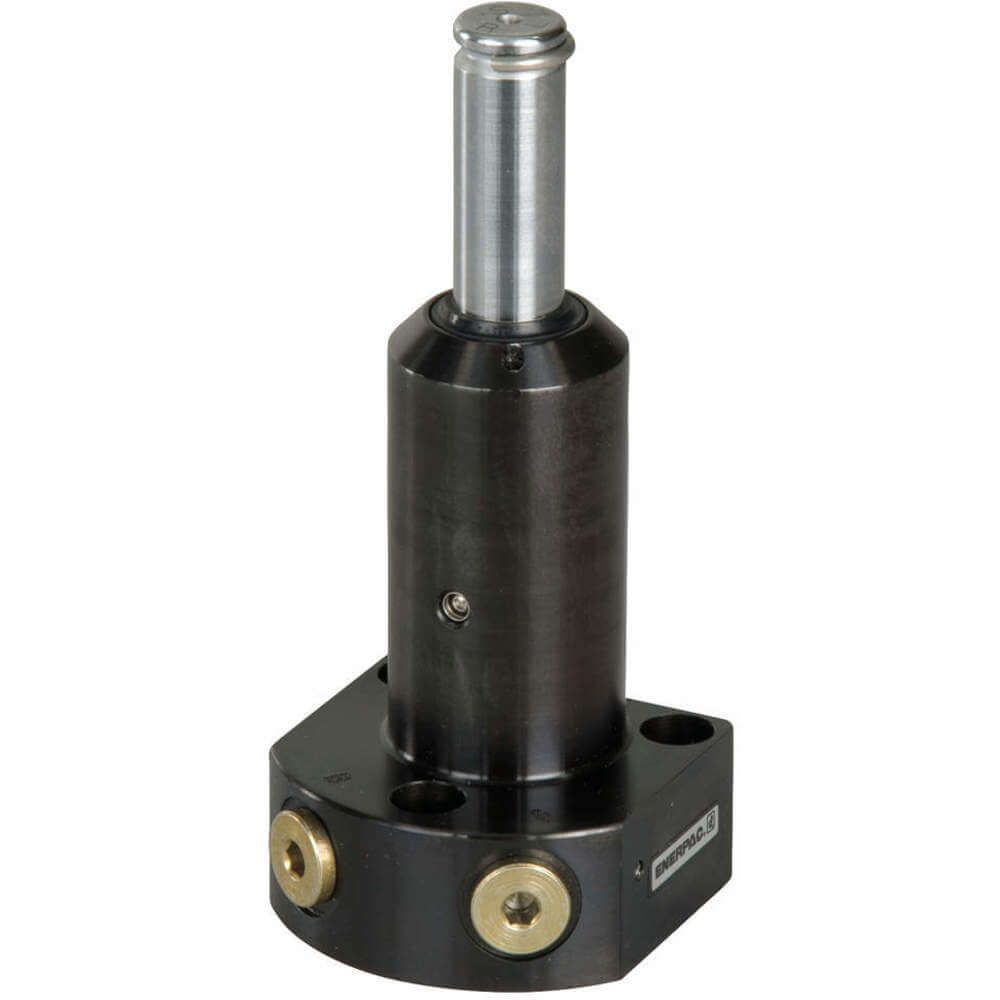

ENERPAC SLLD51 Swing Clamp, 1250 lbs Force, Double-Acting, Left Turning, Lower Flange

Item: AE6TDE Model: SLLD51Cross Ref: 5UWX0
In Stock

Get it by Jun 10, Monday

£9.99 Flat Shipping £9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

£1,001.84 /unit (Inc. VAT)
Trade Prices Available
ADD TO CART
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemClamp Arm
Clamping Force1250 lbs.
Clamping Stroke0.39"
Cylinder Effective Area Clamp0.28 sq. in.
Cylinder Effective Area Unclamp0.59 sq. in.
Cylinder Return TypeDouble Acting
Dimension A5.33"
Dimension C3.68"
Dimension C14.57"
Dimension D1.37"
Dimension D12.13"
Dimension D22.25"
Dimension F0.63"
Dimension GSAE #4
Dimension H0.55"
Dimension K0.76"
Dimension N0.75"
Dimension P1.58"
Dimension Q1/3"-18 UNC
Dimension S1.614"
Dimension T1.89"
Dimension U1.97"
Dimension V0.27"
Dimension X0.565"
MaterialSteel
Max. Oil Flow25 cu. in./min.
Max. Operating Pressure5000 psi
Min. Operating Pressure500 psi
Mounting Thread Size1/4"-28
Mounting Thread TypeCoarse
Mounting TypeLower Flange
Number of Bolts3
Oil Capacity Clamped0.25 cu. in.
Oil Capacity Unclamped0.52 cu. in.
RotationLeft
Stroke0.89"
Swing Angle30 Deg., 60 Deg.

Shipping Info:

Ship weight (kg) 1.06
Ship height (cm)8.64
Ship length (cm)24.38
Ship width (cm)9.91
HS code8412210030
Country of OriginUS

Product Details:

  • Effective Area Unclamped (0.59 sq. in.)
  • Swing Angle (90 Degrees)

Product Variants

ProductModelDimension GDimension C1Clamping ForceCylinder Effective Area ClampCylinder Effective Area UnclampCylinder Return TypeDimension ADimension CPrice
ENERPAC SLLS21 Swing Clamp, 475 lbs Force, Single-Acting, Left Turning, Lower Flange | AE6TCX 5UWU3
SLLS21SAE #23.78"475 lbs.0.12 sq. in.-Single Acting4.41"3.13"£1,020.50
ENERPAC SLLS51 Swing Clamp, 1100 lbs Force, Single-Acting, Left Turning, Lower Flange | AE6TCY 5UWU4
SLLS51SAE #44.57"1100 lbs.0.28 sq. in.-Single Acting5.33"3.68"£993.67
ENERPAC SLLS121 Swing Clamp, 2400 lbs Force, Single-Acting, Left Turning, Lower Flange | AE6TCZ 5UWU5
SLLS121SAE #45.56"2400 lbs.0.63 sq. in.-Single Acting6.75"4.46"£1,081.87
ENERPAC SLLD21 Swing Clamp, 500 lbs Force, Double-Acting, Left Turning, Lower Flange | AE6TDD 5UWU9
SLLD21SAE #23.78"500 lbs.0.12 sq. in.0.24 sq. in.Double Acting4.41"3.13"£1,038.25
ENERPAC SLLD121 Swing Clamp, 2600 lbs Force, Double-Acting, Left Turning, Lower Flange | AE6TDF 5UWX1
SLLD121SAE #45.56"2600 lbs.0.63 sq. in.1.23 sq. in.Double Acting6.75"4.46"£1,155.12
ENERPAC SLLD351 Swing Clamp, 7600 lbs Force, Double-Acting, Left Turning, Lower Flange | AF8KTD 26VZ43
SLLD351SAE #46.19"7600 lbs.1.92 sq. in.3.68 sq. in.Double Acting7.77"4.91"£1,843.68
