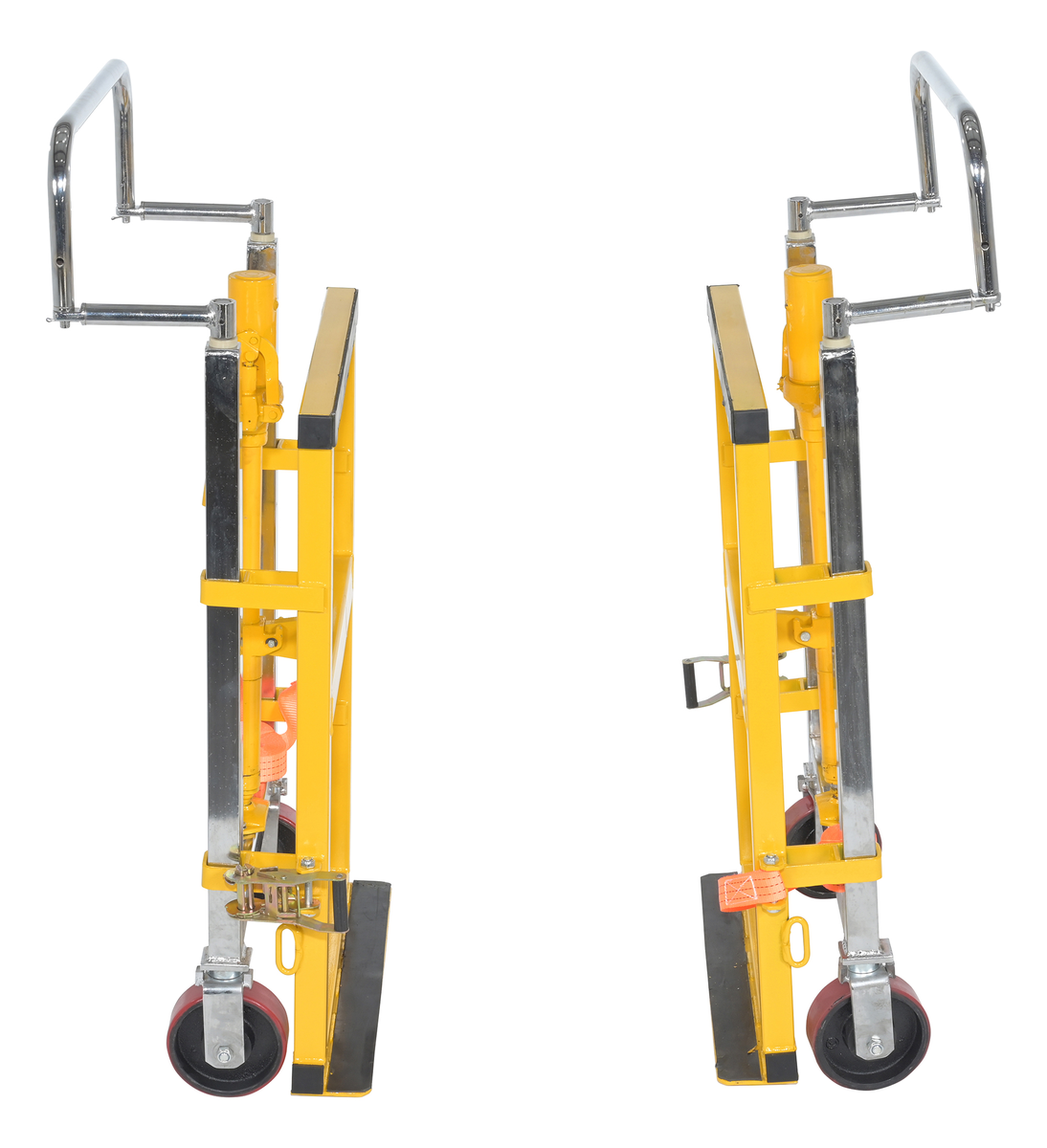

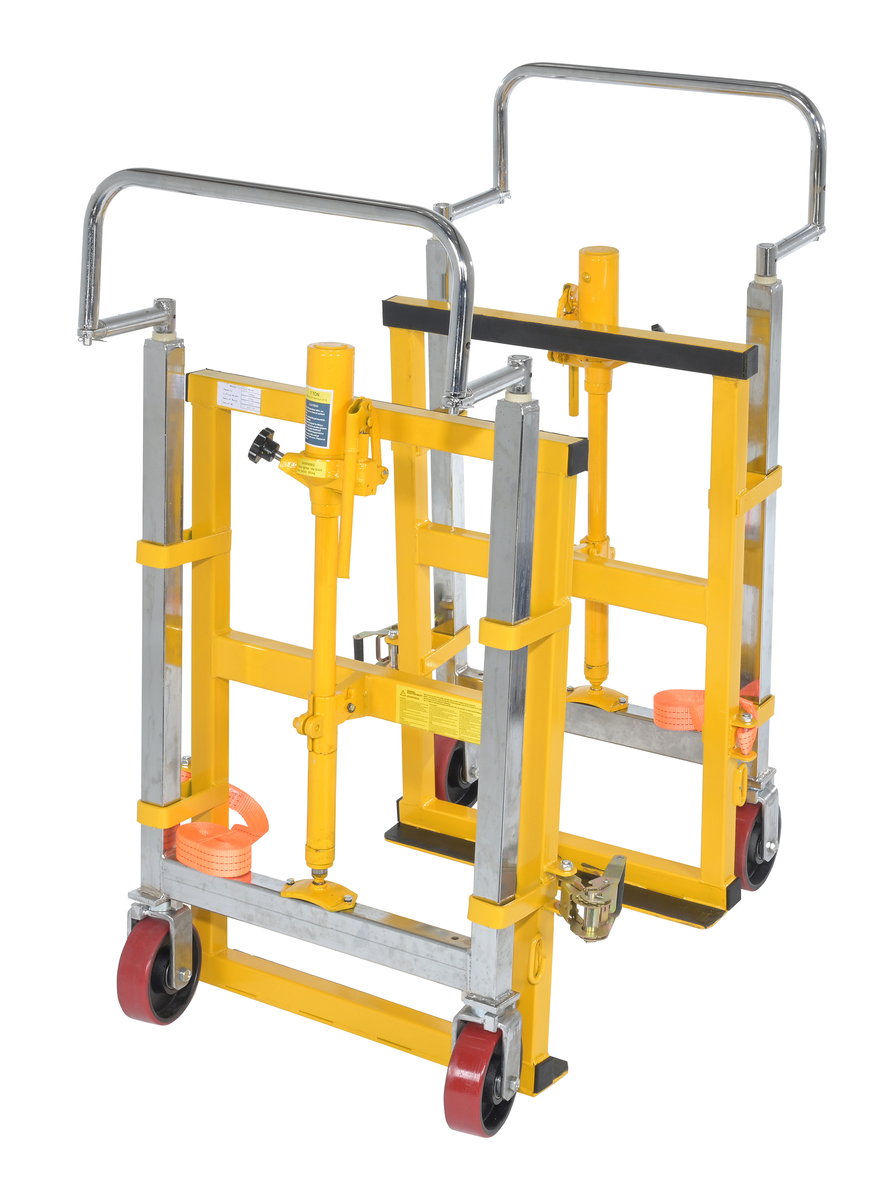

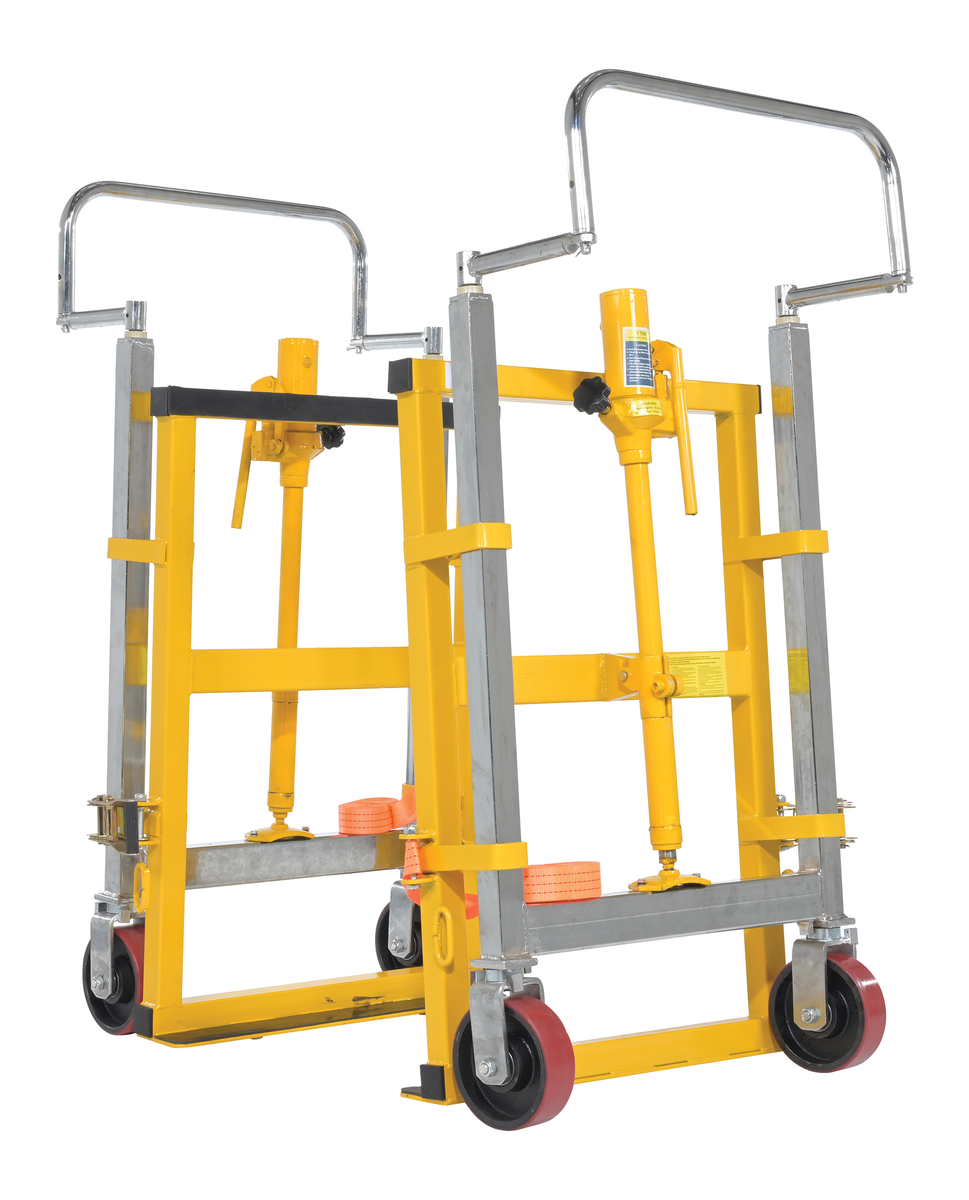

VESTIL MFM-4000 Crate Mover, Hydraulic Lift, 4000 lb., 15 x 26-3/4 x 49-1/4 Inch Size, Yellow, Steel

Working Mechanism:

• Push the platform of the mover under the narrow or side faces of the cabinet until the bottom & top of the transport platform frame are resting against it.
• Place the securing straps in position & tighten them.
• Pump up the platform about 1 cm and ensure that the unit is stable.
• Raise both platforms the same amount simultaneously.
• While moving, push the unit and move it lengthwise.

Standards and Approvals:

• OSHA

Frequently Asked Questions:

Q. What is the maximum lifting height of MFM-4000 mover?

A. This furniture and crate mover has a maximum lifting height of 10 inches.

Q. How to assemble the crate mover?

A.

• Remove the fork pin at the free end of the track rod.
• Set the steering handles parallel to each other.
• Push the fork of the track rod over the arm of the steering handle.
• Replace the previously removed fork pin through the arm & fork.
• Secure it with a split ring.
• Repeat the steps while assembling the second unit.

Q. What are the points to consider while using the furniture & crane mover?

A.

• Before using, check for damaged parts and replace them (if any).
• The mover should be operated by two people.
• The platform should be lowered to the floor until the transporting unit is standing vertically.
• The centre of the platform must be beneath the centre of the gravity of the cabinet.
• Secure the straps to prevent slipping of the cabinets.
• The cabinet being transported must not be left unattended standing on the equipment. It must be lowered onto the floor.
• Never use this model for towing by a vehicle.
