VESTIL HBD-4-60 Electric Hydraulic Box Dumper, 4000 Lb. Capacity, 60 Inch Dump Height, Blue, Steel | AG7TTW

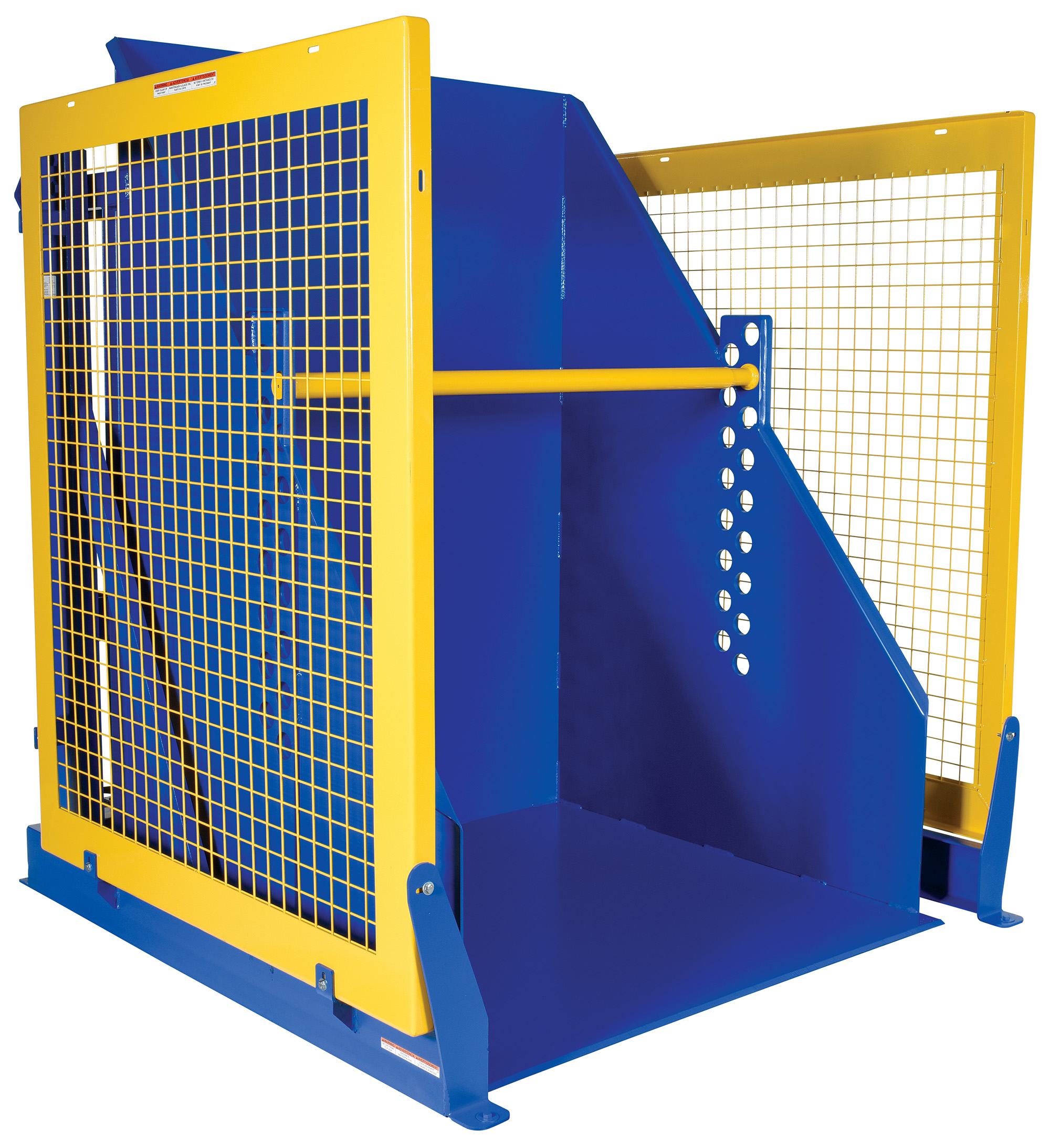

VESTIL HBD-4-60 Electric Hydraulic Box Dumper, 4000 Lb. Capacity, 60 Inch Dump Height, Blue, Steel

Item: AG7TTW Model: HBD-4-60
Call for Availability

Get it by Jun 10, Monday

£14,019.01 /unit (Inc. VAT)
Trade Prices Available
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemBin/Container Dumper
Battery Voltage24V DC
Capacity4000 lbs.
Chute Length50"
Chute Reach at Full Rotation10"
Chute Width52"
ColorBlue, Yellow
Cord Length2 ft.
Dump Angle45 Deg.
Dump Height60"
For Container Size18" to 50"
Hand Held Control24V
Hand Held Control Length8 ft.
Height77"
Hold Down18" to 50"
HP2 hp
IncludesInstallation Hardware
Length68.5"
Level Height77"
Load Capacity4000 lbs.
Lowered Height3/8"
MaterialSteel
Max. Dump Height60"
Max. Duty Cycle Per Hr.15
Max. Duty Cycle Starts Per Hour15
Max. Rotation Travel135 Deg.
Max. Tilt Angle45 Deg.
Motor HP2 hp
Phase3
Platform Length50"
Platform MaterialSteel
Platform Width52"
Power Cord Length2 ft.
Rotated Height149.5"
Standard OutputAC
Usable Chute Length50"
Usable Chute Width52"
Voltage460V
Width69"

Shipping Info:

Ship weight (kg) 902.25
Ship height (cm)195.58
Ship length (cm)173.99
Ship width (cm)175.26
HS code8428900290
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelLengthMotor HPCapacityMax. Dump HeightDump HeightRotated HeightFor Container SizeHeightPrice
VESTIL HBD-2-36 Electric Hydraulic Box Dumper, 2000 Lb. Capacity, 36 Inch Dump Height, Blue, Steel | AG7TTQ
HBD-2-3668.5"2 hp2000 lbs.36"36"111"18" to 36"53.5"£10,327.49
VESTIL HBD-2-48 Electric Hydraulic Box Dumper, 2000 Lb. Capacity, 48 Inch Dump Height, Blue, Steel | AG7TTR
HBD-2-4868.5"2 hp2000 lbs.48"48"129.5"18" to 42"65"£11,746.85
VESTIL HBD-2-60 Electric Hydraulic Box Dumper, 2000 Lb. Capacity, 60 Inch Dump Height, Blue, Steel | AG7TTT
HBD-2-6068.5"2 hp2000 lbs.60"60"149.5"18" to 50"77"£12,671.72
RFQ
VESTIL HBD-4-36 Electric Hydraulic Box Dumper, 4000 Lb. Capacity, 36 Inch Dump Height, Blue, Steel | AG7TTU
HBD-4-3668.5"2 hp4000 lbs.36"36"111"18" to 36"53.5"£12,736.82
VESTIL HBD-4-48 Electric Hydraulic Box Dumper, 4000 Lb. Capacity, 48 Inch Dump Height, Blue, Steel | AG7TTV
HBD-4-4868.5"2 hp4000 lbs.48"48"129.5"18" to 42"65"£13,138.88
VESTIL HBD-6-36 Electric Hydraulic Box Dumper, 6000 Lb. Capacity, 36 Inch Dump Height, Blue, Steel | AG7TTX
HBD-6-3669"5.5 hp6000 lbs.36"36"111"18" to 36"53.5"£13,405.16
VESTIL HBD-6-48 Electric Hydraulic Box Dumper, 6000 Lb. Capacity, 48 Inch Dump Height, Blue, Steel | AG7TTY
HBD-6-4869"5.5 hp6000 lbs.48"48"129.5"18" to 42"65"£13,746.12
