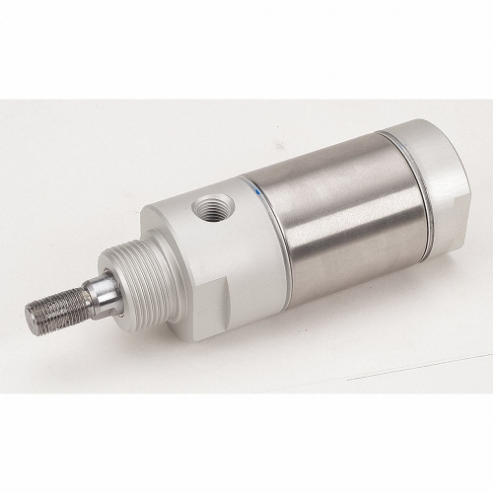

| Item | Air Cylinder |
| Body Material | Stainless Steel |
| Bore Dia. | 2" |
| Cushion Type | None |
| Cylinder Type | Round |
| End Cap Material | Aluminum |
| Finish | Silver |
| Magnetic Piston | No |
| Max. Pressure | 250 psi |
| Mount | Nose |
| Nose Mount Thread | 1-1/4"-12 |
| Overall Length | 9.57" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Port Size | 1/4" NPT |
| Rod Dia. | 5/8" |
| Rod Thread Length | 0.88" |
| Rod Thread Size | 1/2"-20 UNF |
| Single Acting/double Acting | Double Acting |
| Stroke | 4" |
| Temp. Range | -10 Degrees to 165 Degrees F |
| Tube Material | Stainless Steel |
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 6.35 |
| HS code | 8412310080 |
| Country of Origin | US |
| Model | End Cap Material | Max. Pressure | Nose Mount Thread | Overall Length | Port Size | Rod Dia. | Rod Thread Length | Rod Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5TRD3 | Delrin | 100 psi | 1-1/4"-12 | 6.57" | 1/4" | 0.625" | 0.88" | 1/2-20 UNF | £119.65 | |
| 5TRG3 | Delrin | 100 psi | 3/4"-16 | 10.69" | 1/8" | 0.625" | 3/4" | 1/2-20 UNF | £145.90 | |
| 5ZEA9 | Aluminum | 250 psi | 1-1/4"-12 | 7.57" | 1/4" NPT | 5/8" | 0.88" | 1/2"-20 UNF | £114.84 | |
| 5ZEC0 | Aluminum | 250 psi | 1-1/4"-12 | 8.57" | 1/4" NPT | 5/8" | 0.88" | 1/2"-20 UNF | £121.38 | |
| 5ZEC3 | Aluminum | 250 psi | 1-1/4"-12 | 11.57" | 1/4" NPT | 5/8" | 0.88" | 1/2"-20 UNF | £137.03 |
