PS DOORS SMZ-MM100 Mezzanine Safety Gate, 100 Inch Opening Width, Powder Coated Yellow

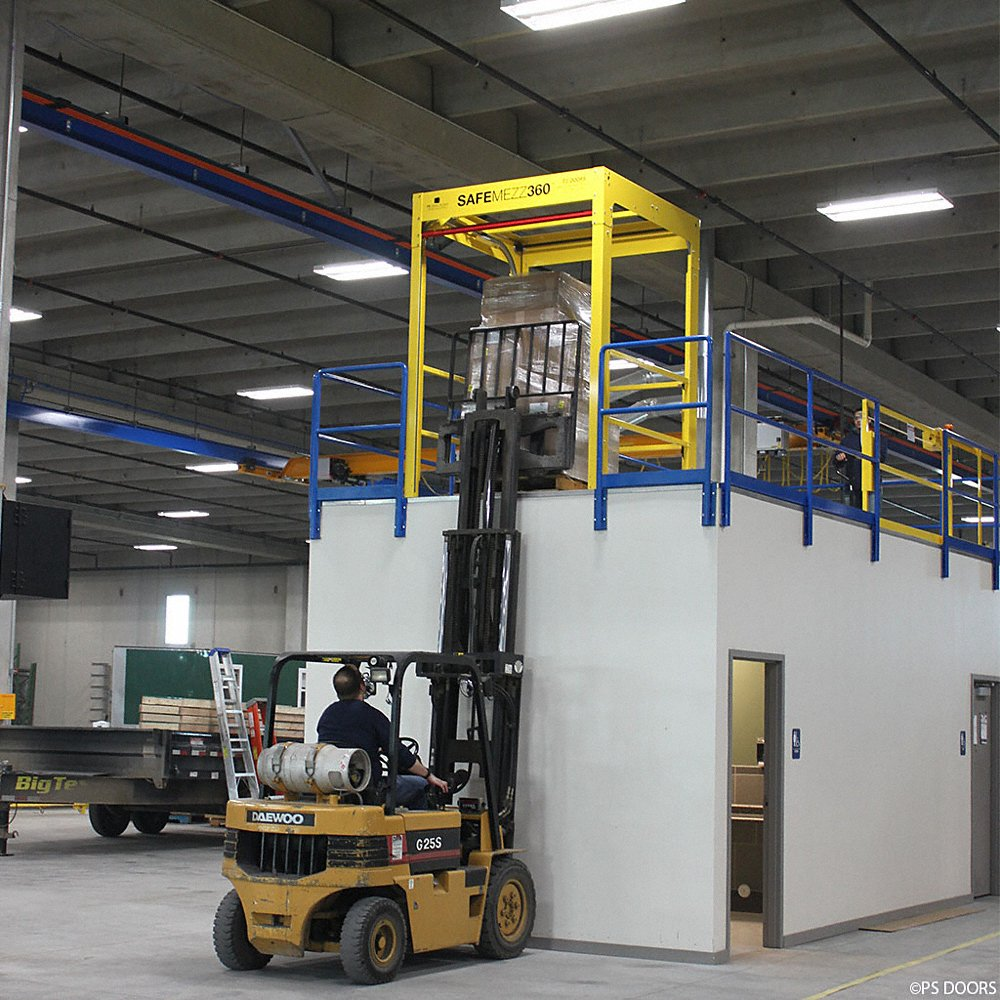

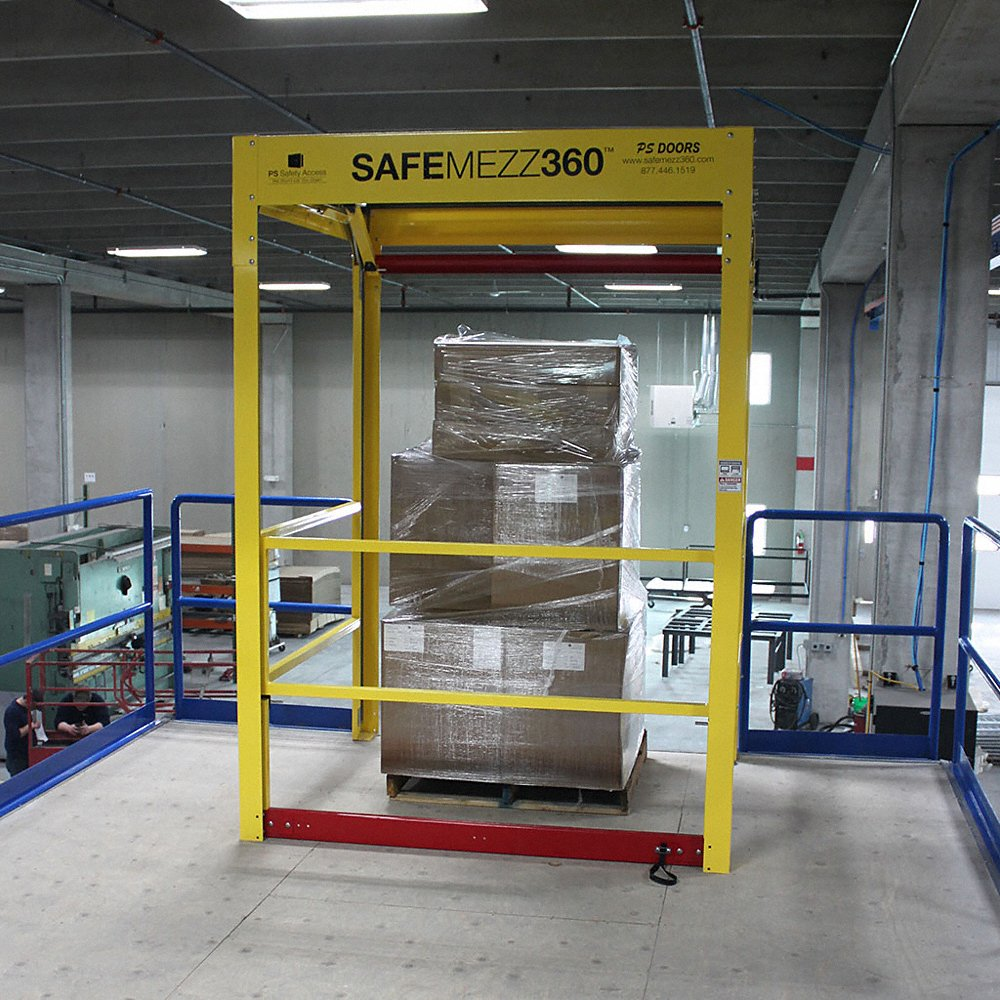

PS Doors SMZ-MM100 SafeMezz360 is a dual gate fall protection system to keep personnel safe while loading & unloading forklifts. It is a foolproof enclosed area that ensures workers' safety from the elevated mezzanine edge.

Working Mechanism:

• Lift up the gate or pull the strap for opening the gate.
• Pull down the gate or pull the strap for closing the gate.
• Never operate it within the pallet drop area when the edge is exposed.

Features:

• PS Doors SMZ-MM100 mezzanine safety gate has a counterbalanced system to offer 360-degree mezzanine ledge protection.
• It features a slam-proof design & a cushioned dampening system to prevent the gate from dropping on toes of personnel or noisy slamming.
• This easy-to-install unit is constructed of heavy-gauge steel with safety yellow, powder-coated finish for repetitive use.
• It allows easy one-handed operation with smooth opening & closing on 2-inch nylon rollers & a track system.

Compatible Accessories:

• PS Doors Side Toeboards: These units protect the sides of mezzanine gates.

Standards and Approvals:

• ISO 14122-3:2016
• ANSI
• OSHA
• CE

Frequently Asked Questions:

Q. How to assemble PS Doors SMZ-MM100 mezzanine gate?

A.

• Start with both side header assemblies lying upside down and place front headers inside the header assemblies.
• Fasten the corners using four 5/16-inch flange nuts & carriage bolts.
• Tighten the sprockets on each side flange bearing to prevent the lateral movement of the shaft.
• Use a shaft key to align the sprocket to the shaft and tighten both set screws firmly. Repeat the same for each corner.
• Attach the four columns to each corner using six 5/16 inch carriage bolts and flange nuts.
• Attach ends of the radiused tracks using track bolts, washers & nylock nuts.
• Attach the side rail to the column using four carriage bolts & flange nuts.
• Attach a temporary brace using two 5/16 inch carriage bolts and flange nuts.
• Once side rails and temporary braces are installed, the product can be tipped into the upright position.
• Finally, attach an anchor bracket to each leg using two carriage bolts and flange nuts.

Q. What operating hardware is required for mezzanine gate operation?

A.

• Heavy-duty chains
• Sprockets
• Shafts
• Bearings
