| Accuracy | -2.5% to +2.5% |
| Accuracy Grade | ASME B40.100 Grade A |
| Accuracy Scale | Mid Scale |
| Adjustable Pointer | No |
| Ambient Temp. Range | -30°F to +180°F |
| Application | Added Durability |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Removable |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Gray |
| Case Construction | Welded |
| Case Depth | 1.39" |
| Case Dia. | 2.7" |
| Case Finish | None |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Clog Resistant | No |
| Compatible Process Media | Media Compatible With 316 Stainless Steel |
| Dial Color | White |
| Diaphragm Seal Type | Threaded |
| Dry Dampening Feature | Anti-Vibration Movement |
| Field Fillable | Yes |
| Gauge Case Liquid | None |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Ip65 |
| Lens Material | Polycarbonate |
| Mfr. Series | 301L, 3Jjj |
| Mounting Type | Stem Mount |
| Movement Type | Anti Vibration |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |

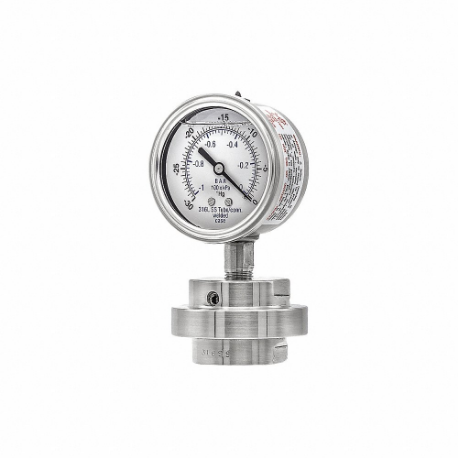

| Pressure Gauge Type | Process Pressure Gauge With Diaphragm Seal |
| Pressure Range | 0 in. hg to 30 in. hg |
| Pressure Range Type | Vacuum |
| Primary Scale Minor Graduations | 0.5 |
| Primary Scale Numeric Increments | 5.0 |
| Primary Scale Units | In Hg |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | Npt |
| Process Temperature Range | -40°F to +300°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Seal Compatible Process Grade | Grade 316 |
| Seal Compatible Process Material | Stainless Steel |
| Seal Diaphragm Grade | Grade 316 |
| Seal Diaphragm Material | Stainless Steel |
| Seal Diaphragm Material Grade | Grade 316 |
| Seal Fill Liquid | Glycerin |
| Seal Lower Housing Grade | Grade 316 |
| Seal Lower Housing Material | Stainless Steel |
| Secondary Pressure Range | -1 Bar to 0 Bar |
| Secondary Scale Units | Bar |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Socket Material | Stainless Steel |
| Vibration Resistance | Field Fillable |
| Wetted Parts Grade | Grade 316 |
| Wetted Parts Material | Stainless Steel |
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.53 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
301L254M/0JJJ100 | £124.27 | |
 |
301L254M/0JJJ200 | £118.51 | |
 |
301L254E/0JJJ100 | £124.27 | |
 |
301L254E/0JJJ200 | £106.99 | |
 |
301L254E/1JTT100 | £242.28 | |
 |
301L254E/5JJJA00 | £161.28 | |
 |
301L254E/CPTP200 | £213.22 |
