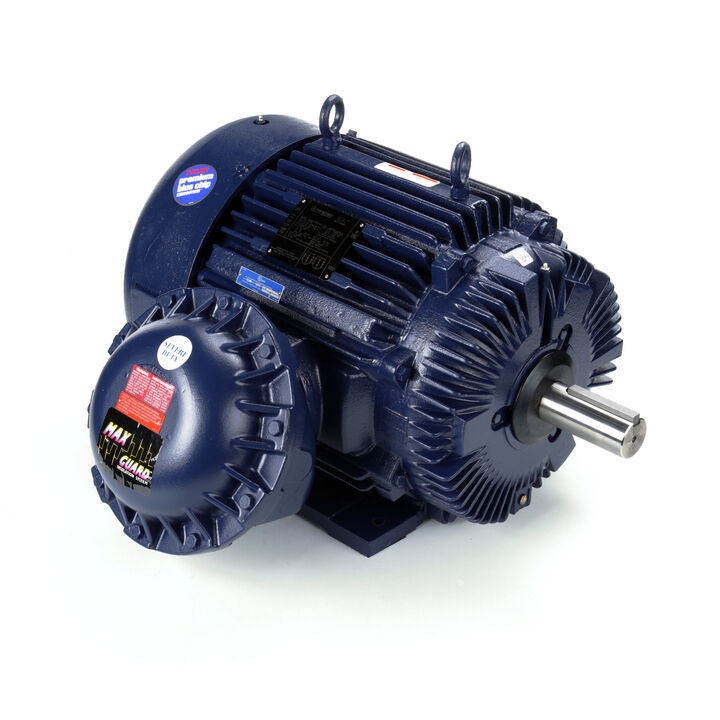

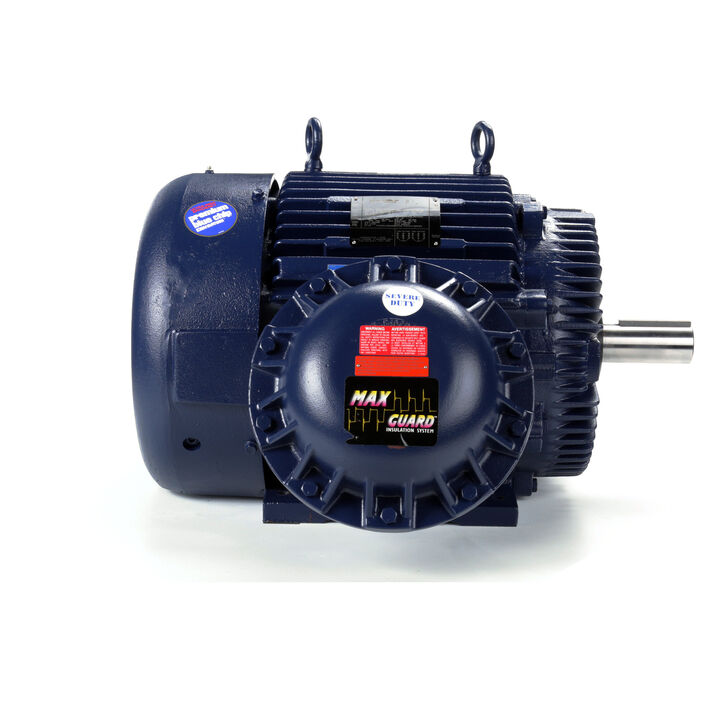

MARATHON MOTORS 365TTGS16540 Hazardous Location Motor 75 Hp 1782 Rpm 230/460v | AC8EZZ 39P290 / E576A

MARATHON MOTORS 365TTGS16540 E576A / 365TTGS16540AN Explosion Proof Motor, 75/60 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM

Item: AC8EZZ Model: 365TTGS16540Cross Ref: 39P290 / E576A / 365TTGS16540AN
See variants (10)
In Stock

Get it by Tuesday, Dec 3

£11,787.73 /unit (Inc. VAT)
Trade Prices Available
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemHazardous Location Motor
BearingsBall
DutyContinuous
Efficiency GroupNema Premium
EnclosureTotally Enclosed Fan-Cooled
Frame365T
Frame MaterialCast Iron
Frequency60 Hz
Full Load Amps174/87, 169/84.5
Hazardous Location Class1 C,D / 2 F,G
Hp75
Hz50/60
Insulation ClassF
Length Less Shaft26.375"
Max. Ambient Temp.40 Degrees C
Motor ApplicationHazardous Locations
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting TypeRigid Base
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionT-stat
Motor Type3-Phase
MountingRigid
Nameplate Rpm1782
Nema DesignA
Nominal Efficiency95.4%
NumberCc003A
Overall Length32.5"
Phase3
RotationCW/CCW
Rpm Range1701-1800
Service Factor1.15
Shaft Dia.2.375"
Shaft Length5.875"
Temp. CodeT3B
Thermal ProtectionT Stat
Voltage230/460

Shipping Info:

Ship weight (kg) 517.5
Ship height (cm)68.15
Ship length (cm)114
Ship width (cm)99.7
HS code8501528040
Country of OriginUS

Product Details:

    • Supersedes Marathon - E576 / 365TTGS6547

Product Variants

ProductModelEfficiency GroupEnclosureFrameFrame SizeFull Load AmpsHazardous Location ClassHPHzPrice
MARATHON MOTORS 364TTGS16536 Hazardous Location Motor 60 Hp 1780 Rpm 230/460v | AC8EZW 39P287 / E573A
 364TTGS16536NEMA PremiumTotally Enclosed Fan-Cooled364T-138/691 C,D / 2 F,G6060£10,155.38
MARATHON MOTORS 286TTGN16577 Hazardous Location Motor 3-phase Tefc 20 Hp T3b | AE6YJD 5VYH1 / E507
 286TTGN16577NEMA PremiumTotally Enclosed Fan-Cooled284/6T-53.5/26.81 C,D / 2 F,G2060£5,610.77
MARATHON MOTORS 326TTGS6532 Hazardous Location Motor 3-phase Tefc 50 Hp T3b | AE6YJH 5VYH8 / E570
 326TTGS6532NEMA PremiumTotally Enclosed Fan-Cooled324/6T-123/61.51 C,D / 2 F,G5050/60£7,324.31
MARATHON MOTORS 364TTGS16577 Hazardous Location Motor 3-phase Tefc 40 Hp T3b | AE6YJL 5VYJ1 / E568A
 364TTGS16577NEMA PremiumTotally Enclosed Fan-Cooled364T-100/501 C,D / 2 F,G4050/60£10,431.59
MARATHON MOTORS 324TSTGS6501 Hazardous Location Motor 3-phase Tefc 40 Hp T3b | AE9MQP 6KWH5 / E566
 324TSTGS6501PremiumTotally Enclosed Fan-Cooled324TS-94/471 C,D / 2 F,G4050/60£7,737.52
MARATHON MOTORS 324TTGS6529 Hazardous Location Motor 3-phase Tefc 40 Hp T3b | AE9MQQ 6KWH6 / E567
 324TTGS6529PremiumTotally Enclosed Fan-Cooled324T-95/47.51 C,D / 2 F,G4050/60£6,909.47
MARATHON MOTORS 286TTGN6537 E564 Explosion Proof Motor 50-60 Hertz | AJ2MCA E564
 286TTGN6537-EPFC286T-73/36.5EXP PROOF CL I GR C&D CL II GR F&G T3B3060-
