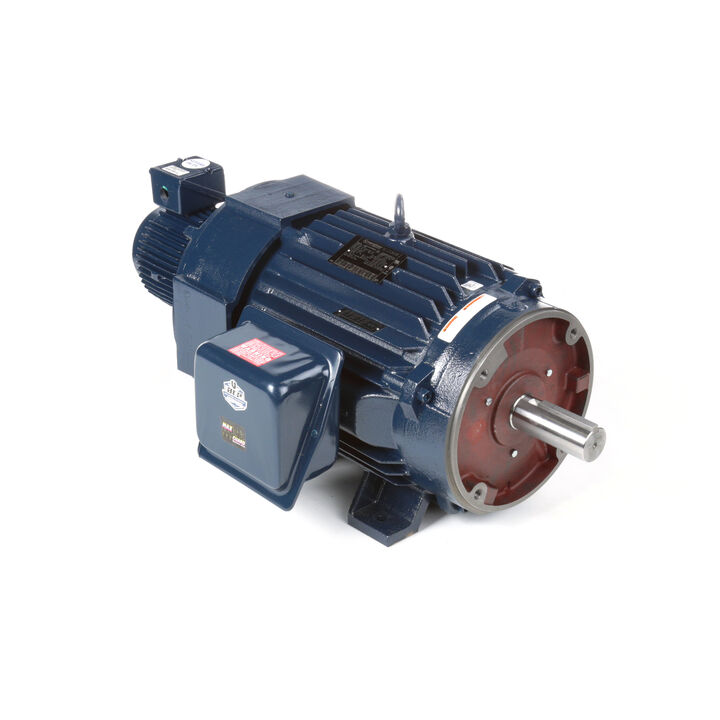

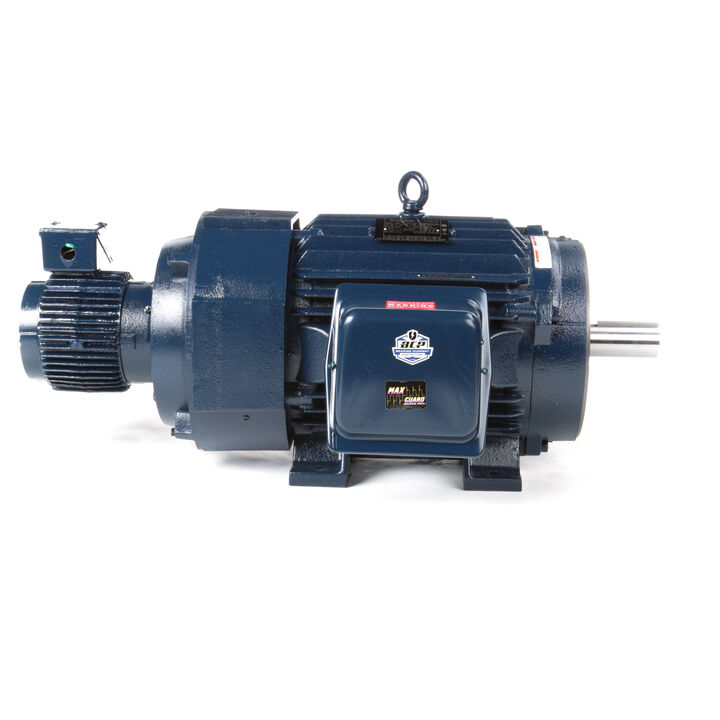

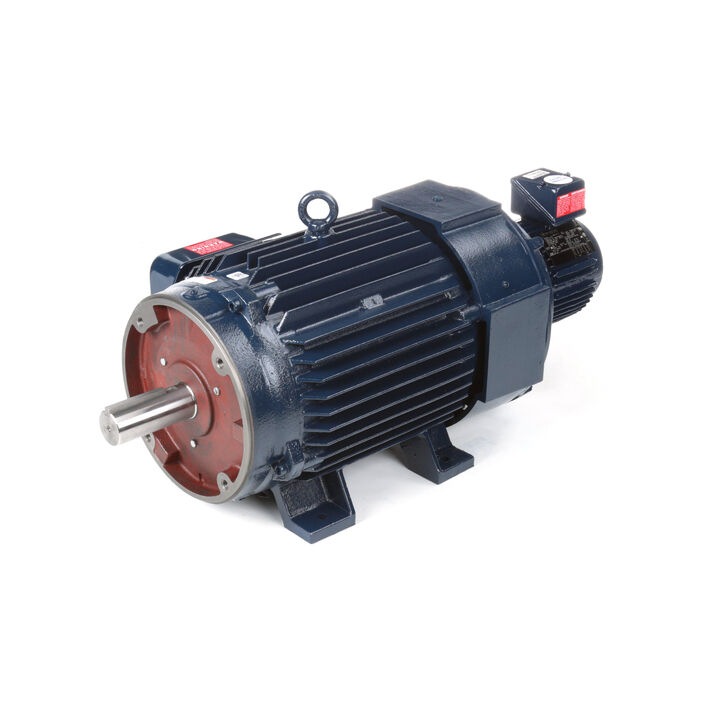

| Item | Vector Motor |
| Ambient Temp. Range | 40 Degrees C |
| Base | Rigid |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1" x 1-3/4" |
| Finish | Blue Enamel |
| Frame | 324Tc |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 100.0/50.0 |
| Hp | 40 |
| Hz | 60 |
| Insulation Class | H |
| Insulation Feature | Class F |
| Max. Operating Frequency | 90 Hz |
| Max. Speed | 4000 RPM |
| Motor Application | Cranes |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Blower-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-stat |
| Nameplate Rpm | 1770 |
| Nema Design | A |
| Nominal Efficiency | 91.7% |
| Overall Length | 40 9/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 |
| Service Factor | 1.00 |
| Shaft Dia. | 2.125" |
| Shaft Length | 5" |
| Speed Range | 2000:1 |
| Thermal Protection | T-stat |
| Voltage | 230/460 |
| Warranty | 3 yr. |
| Ship weight (kg) | 273.6 |
| Ship height (cm) | 60.33 |
| Ship length (cm) | 114 |
| Ship width (cm) | 66.04 |
| HS code | 8501528040 |
| Country of Origin | US |
| Product | Model | Efficiency Group | Enclosure | Frame | Full Load Amps | HP | kW | Max. Speed | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
184THTS8028 | Premium | - | 182TC | 8.0/4.0 | 3 | - | 5400 RPM | Totally Enclosed Nonventilated | £1,986.77 | |
 |
254THTNA8058 | Premium | - | 254TC | 40.5/20.2 | 15 | - | 4200 RPM | Totally Enclosed Nonventilated | £3,801.14 | |
 |
284THFPA8028 | Epact | - | 284T | 63.0/31.5 | 25 | - | 4000 RPM | Totally Enclosed Fan-Cooled | £4,624.75 | |
 |
284THFPA8038 | Epact | - | 284TC | 63.0/31.5 | 25 | - | 3600 RPM | Totally Enclosed Blower-Cooled | £6,462.56 | |
 |
284THFPA8086 | Epact | - | 284TC | 63.0/31.5 | 25 | - | 2700 RPM | Totally Enclosed Blower-Cooled | £7,458.52 | |
 |
286THFNA8028 | Epact | - | 286T | 77.0/38.5 | 30 | - | 4000 RPM | Totally Enclosed Fan-Cooled | £5,285.57 | |
 |
286THFPA8038 | Epact | - | 286TC | 74.0/37.0 | 30 | - | 3600 RPM | Totally Enclosed Blower-Cooled | £7,124.76 |
