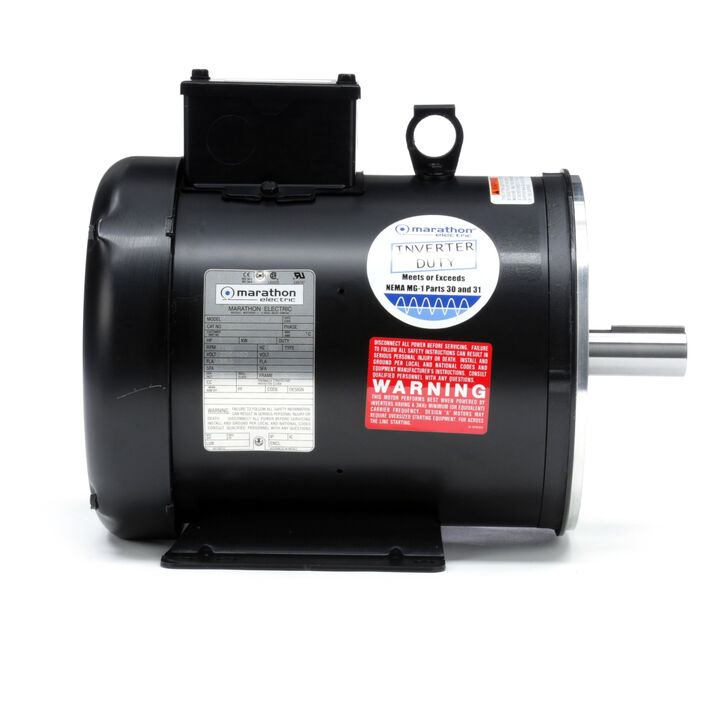

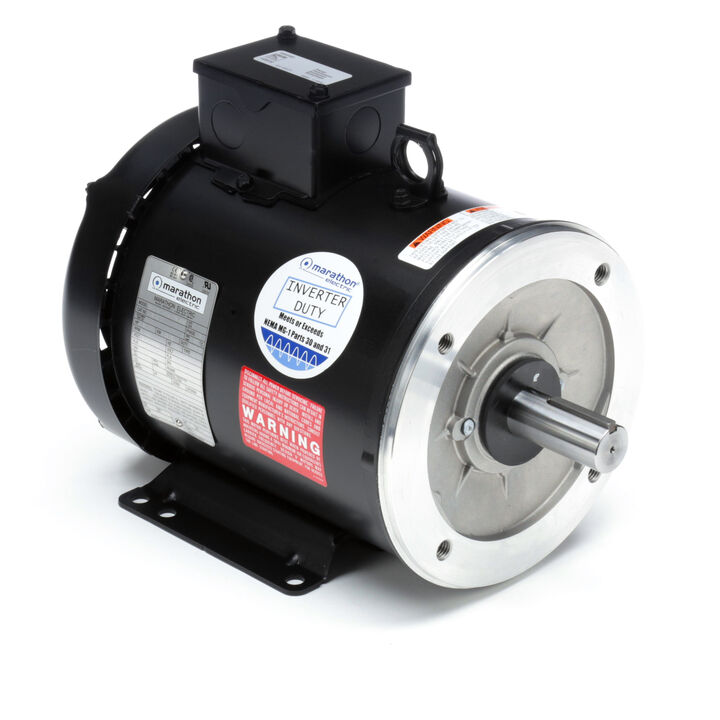

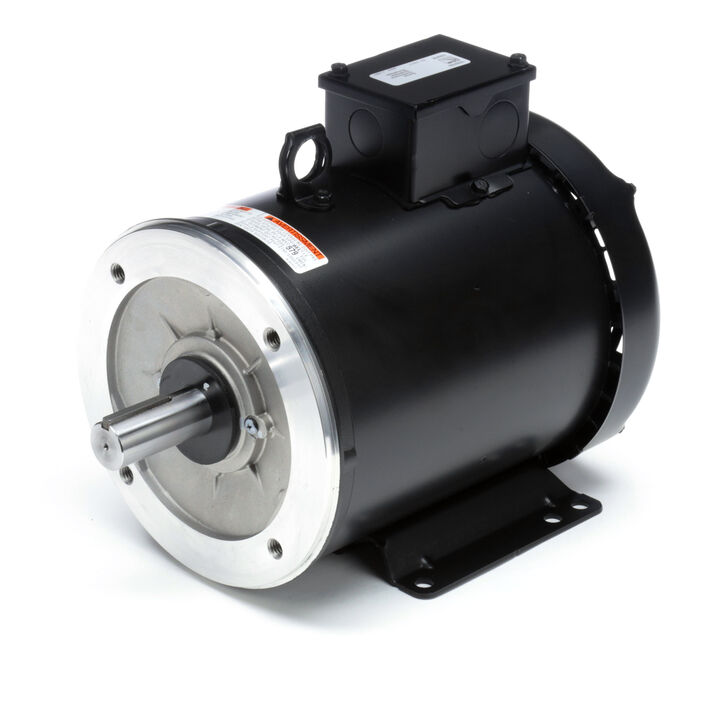

| Item | Vector Motor |
| Ambient Temp. Range | 40°C |
| Base | Bolt On |
| Base Type | Bolt On |
| Bearings | Ball |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Constant Torque | 1000:1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Epact |
| Enclosure | Totally Enclosed Fan-Cooled |
| Encoder Acceptable | No |
| Encoder Shaft | None |
| Finish | Black |
| Frame | 184Tc |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13/6.5 |
| Full Load Torque | 15 ft.-lbs. |
| Hp | 5 hp |
| Hz | 60 |
| Insulation Class | Class H |
| Insulation Feature | CR200 Magnet Wire Class H |
| Length Less Shaft | 11 1/8" |
| Max. Ambient Temp. | 40°C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 4200 RPM |
| Motor Application | Cranes |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | 3-Phase |
| Mounting | Face/Base |
| Mounting Position | Horizontal |
| Nameplate Rpm | 1760 RPM |
| Nema Design | A |
| Nominal Efficiency | 87.5% |
| Number Of Speeds | 1 |
| Overall Length | 14" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 7/8" |
| Speed Range | 1000:1 |
| Thermal Protection | None |
| Torque | 15 ft.-lb. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460 |
| Weight | 92 lbs. |
| Ship weight (kg) | 41.4 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Base | Frame | Full Load Amps | HP | Max. Speed | Motor Mounting Position | Mounting Position | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182THFW7729 | Bolt On | 182TC | 8.4/4.2 | 3 | 4200 RPM | Horizontal | Horizontal | 1765 | £1,331.58 | |
 |
213THFW7726 | Removable | 213TC | 21.4/10.7 | 7.5 | 4000 RPM | All Angle | Horizontal or Vertical | 1770 | £1,722.41 | |
 |
215THFW7726 | Removable | 215TC | 27.6/13.8 | 10 | 4000 RPM | All Angle | Horizontal or Vertical | 1770 | £2,203.60 |
