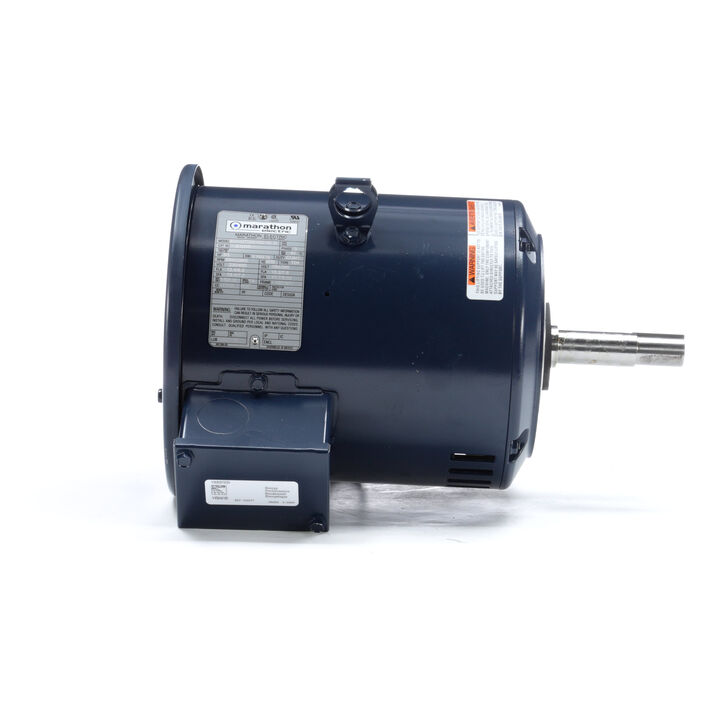

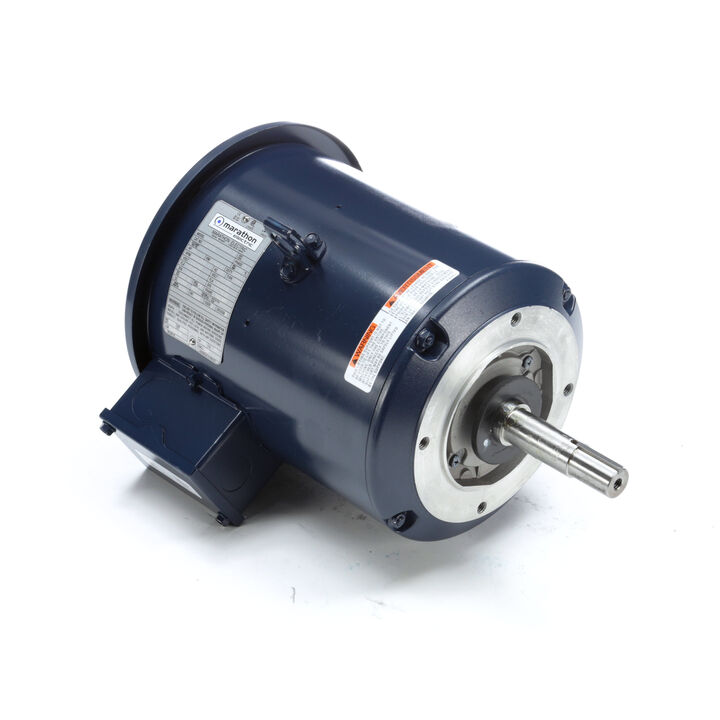

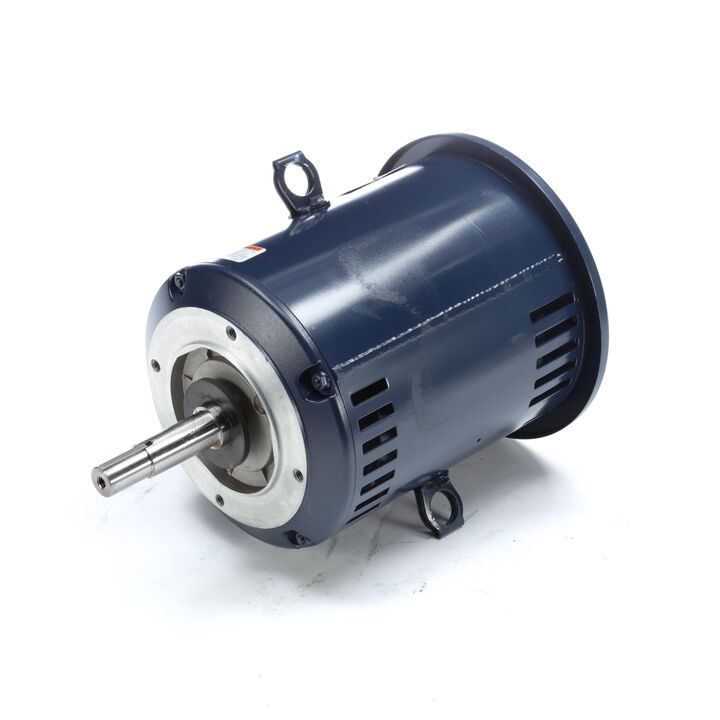

MARATHON MOTORS 182TTDW16021 Close-Coupled Pump Motor, 5 HP, 3-Phase, 3500 Nameplate RPM, 200 Voltage | CD3KLD 52ZV69

MARATHON MOTORS 182TTDW16021 182TTDW16021AA / E153B Close Coupled Pump Motor, 5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Item: CD3KLD Model: 182TTDW16021Cross Ref: 52ZV69 / 182TTDW16021AA / E153B
See variants (13)
In Stock

Get it by Wednesday, Jan 1

£1,096.84 /unit (Inc. VAT)
Trade Prices Available
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemClose-Coupled Pump Motor
BearingsBall
DutyContinuous
Efficiency GroupNema Premium Efficient
Frame182Jmv
Frame MaterialRolled Steel
Full Load Amps12.4/6.2
Hp5
Hz50/60
Insulation ClassF
Inverter RatedNo
Length Less Shaft10 13/16"
Max. Ambient Temp.40 Degrees C
Motor ApplicationPump
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeFace
Motor Shaft DesignKeyed And Drilled On Center
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
Nameplate Rpm3500
Nominal Efficiency87.5%
NumberCC003A
Overall Length14 15/16"
Phase3
Rpm Range1701-1800
Service Factor1.15
Shaft Dia.7/8"
Shaft Length4.125"
Voltage200

Shipping Info:

Ship weight (kg) 20.7
Ship height (cm)40.64
Ship length (cm)68.58
Ship width (cm)33.02
HS code8501524000
Country of OriginMX

Product Variants

ProductModelBody Dia.Efficiency GroupFrameFrame MaterialFull Load AmpsHeightHPHzPrice
MARATHON MOTORS 213TTDBD6032 Close-coupled Pump Motor 3-phase 7-1/2 Hp | AF8LDU 26ZY04 / GT0416A / 213TTDB6032
 213TTDBD6032-NEMA Premium213JMRolled Steel21.0-19.0/9.5-7.550/60£1,339.75
MARATHON MOTORS 215TTDBD6008 Close-coupled Pump Motor 3-phase 15 Hp | AF8LDX 26ZY07 / GT0521A / 215TTDB6008
 215TTDBD6008-NEMA Premium215JMRolled Steel13.6-1560£1,864.36
MARATHON MOTORS 286TTDBD6007 Close-Coupled Pump Motor, 40HP, 3-Phase, 3555 Nameplate RPM, 208-230/460 Voltage | CD3KJD 52JA59
 286TTDBD6007-NEMA Premium Efficient286JMCast Iron89.0/44.5-4050/60£3,765.96
MARATHON MOTORS 182TTDW16067 Close-Coupled Pump Motor, 3 HP, 3-Phase, 1760 Nameplate RPM, 200 Voltage | CD3KLC 52ZV68
 182TTDW16067-NEMA Premium Efficient182JMVRolled Steel8.0/4.0-350/60£1,055.84
MARATHON MOTORS 184TTDW16073 Close-Coupled Pump Motor, 5 HP, 3-Phase, 1755 Nameplate RPM, 230/460 Voltage | CD3KLF 52ZV71
 184TTDW16073-NEMA Premium Efficient184JMVRolled Steel12.6/6.3-550/60£1,145.29
MARATHON MOTORS 213TTDWD16333 Close-Coupled Pump Motor, 7-1/2 HP, 3-Phase, 1765 Nameplate RPM, 200 Voltage | CD3KLH 52ZV74
 213TTDWD16333-NEMA Premium Efficient213JMVRolled Steel20.0/10.0-7.550/60£1,607.38
MARATHON MOTORS 215TTDWD16349 Close-Coupled Pump Motor, 10 HP, 3-Phase, 1765 Nameplate RPM, 200 Voltage | CD3KLJ 52ZV75
 215TTDWD16349-NEMA Premium Efficient213JMVRolled Steel26.2/13.1-1050/60£1,880.04
