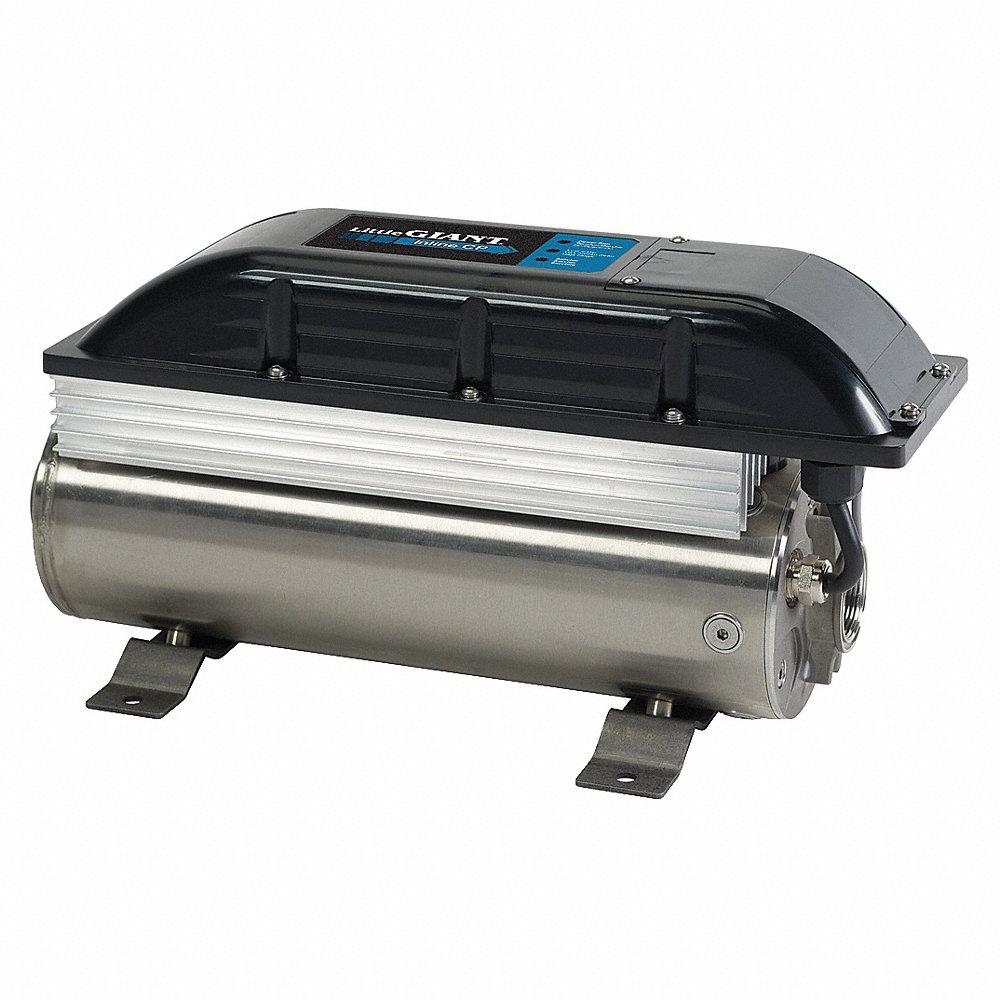

| Item | Constant Pressure Booster System |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/4" |
| Display Qty | 1 |
| Display Sell Uom | EA |
| Duty Cycle | Continuous |
| Frequency | 60 Hz |
| Housing Material | Stainless Steel |
| Hp | 1 1/5 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Includes | Tank |
| Max. Case Pressure | 150 psi |
| Max. Flow Rate | 46 GPM |
| Max. Head | 160 ft. |
| Max. Media Temp. | 145°F |
| Max. Motor Ambient Temp. | 122°F |
| Max. Pressure Boost | 60 psi |
| Max. Rpm | 3450 RPM |
| Max. Solid Dia. | 1/4" |
| Max. Suction Lift | 5 ft. |
| Max. System Pressure | 70 psi |
| Media Type | Water |
| Min. Flow Rate | 1 GPM |
| Mounting Orientation | Inline |
| No. Of Stages | 3 |
| Overall Height | 9.31" |
| Overall Length | 18 21/25" |
| Overall Width | 5 18/25" |
| Overload Thermal Protection | Yes |
| Pumping Application | Increased And Constant Water Pressure From Water Storage/Cistern Systems, Irrigation And Water Reclamation Systems, Multi-Family Dwellings, Duplexes, Municipal Water Or Private Well Systems, Triplexes And Quads |
| Seal Material | Carbon/Ceramic |
| Self Priming | Manual |
| Tank Type | Pressure Tank Not Included |
| Voltage | 230V AC |
| Wetted Material | Stainless Steel |
| Ship weight (kg) | 19.82 |
| Ship height (cm) | 57 |
| Ship length (cm) | 23.98 |
| Ship width (cm) | 30.18 |
