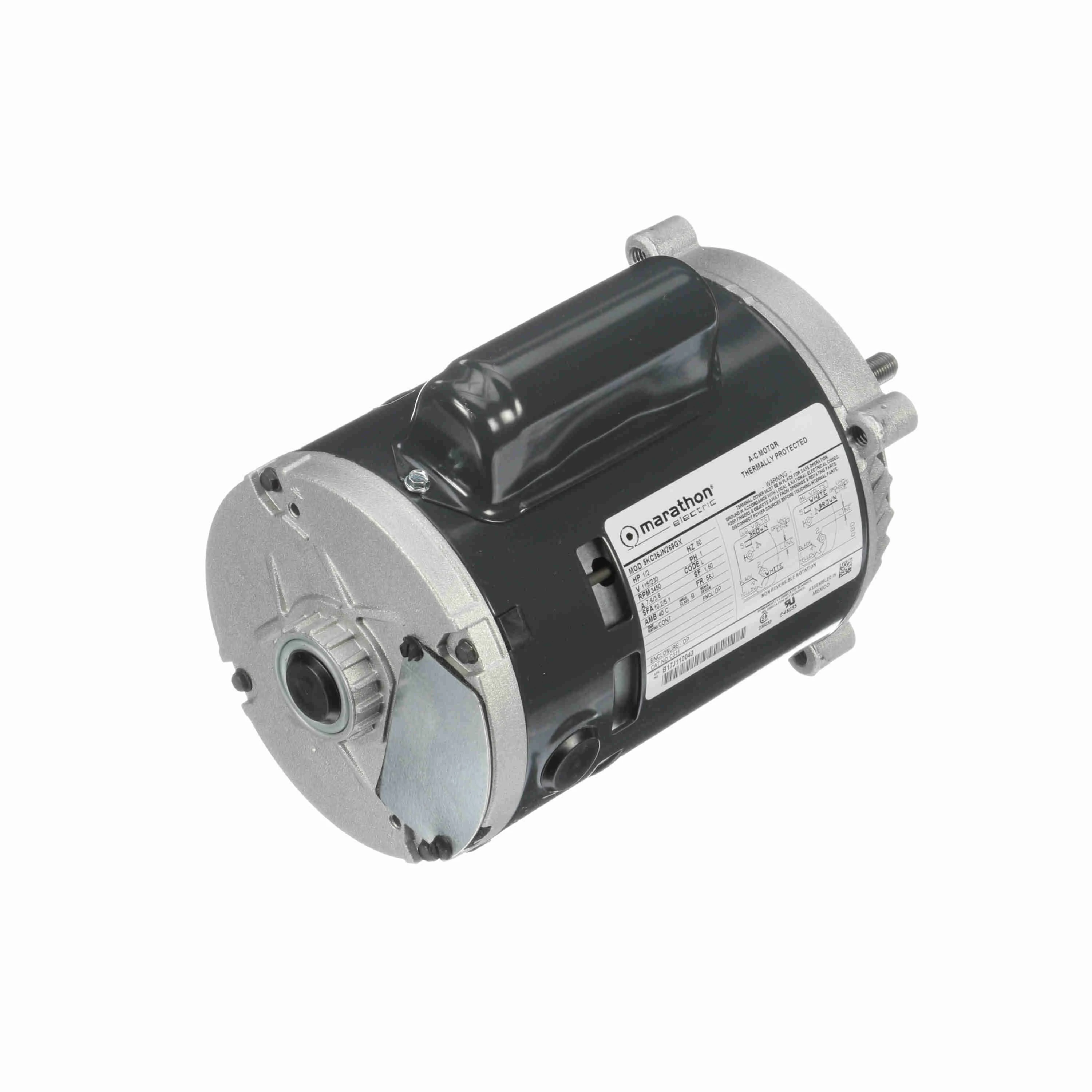

| Item | Jet Pump Motor |
| Bearings | Ball |
| Body Dia. | 5.66" |
| Duty | Continuous |
| Enclosure | Open Dripproof |
| Frame | 56J |
| Full Load Amps | 3.7-3.8 |
| Hp | 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pumps |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Jet Pumps |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor-Start |
| Mounting | Face |
| Nameplate Rpm | 3450 |
| Overall Length | 10.875" |
| Phase | 1 |
| Rotation | Ccwse |
| Rpm Range | 3001-3600 |
| Service Factor | 1.6 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.375" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded 7/16-20 UNF-2A |
| Thermal Protection | Auto |
| Voltage | 115/208-230 |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Body Dia. | Enclosure | Full Load Amps | HP | Item | Motor Mounting Position | Overall Length | Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KC39QN3219X | 5.66" | Open Dripproof | 5.3-5.6 | 3/4 | Jet Pump Motor | Horizontal | 12.375" | CCWSE | £341.60 | |
 |
5KC39RN45X | 5.66" | Open Dripproof | 6.5/6.6 | 1 | Jet Pump Motor | Horizontal | 13.125" | CCWSE | £381.36 | |
 |
5KC49NN2167X | 6.42" | Open Dripproof | 18.4/9.2 | 1.5 | Jet Pump Motor | All Angle | 11.875" | CCWSE | £764.56 | |
 |
5KCR48TN2174T | 6.42" | Open Dripproof | 29.4/14.7 | 3 | Jet Pump Motor | All Angle | 13.187" | CCWSE | £1,046.54 | |
 |
5KC37FN65X | - | DP | 6.4/3.0-3.2 | 1/3 | Pump Motor | - | - | Clockwise | £267.68 |
