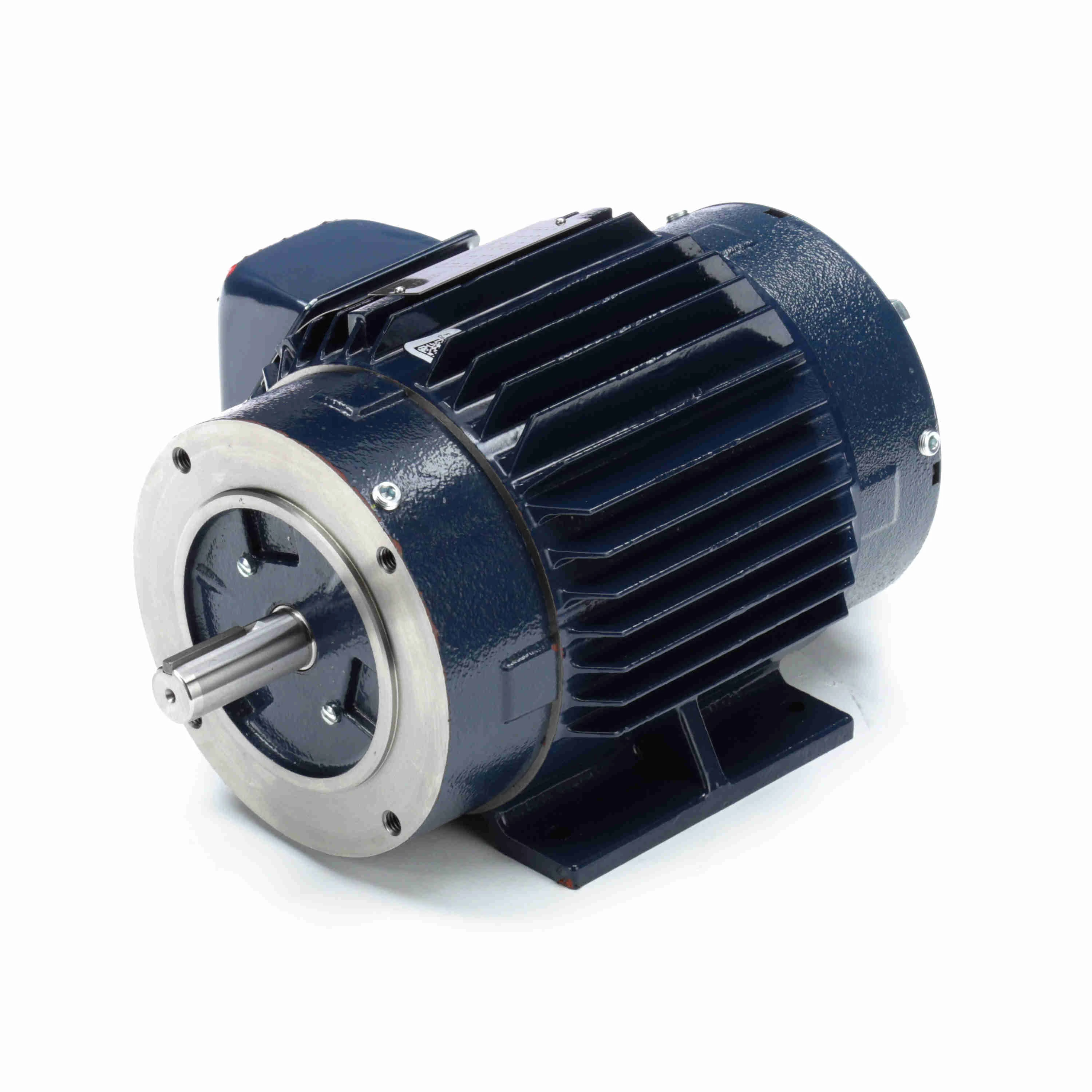

| Item | Vector Motor |
| Ambient Temp. Range | 40 Degrees C |
| Base | Rigid |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Premium |
| Encoder Acceptable | Yes |
| Encoder Shaft | 5/8" x 1-3/4" |
| Finish | Blue Enamel |
| Frame | 143Tc |
| Frame Material | Cast Iron |
| Full Load Amps | 3.0/1.5 |
| Hp | 1 |
| Hz | 60 |
| Insulation Class | H |
| Insulation Feature | Class F |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5400 RPM |
| Motor Application | Cranes |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-stat |
| Nameplate Rpm | 1756 |
| Nema Design | B |
| Nominal Efficiency | 85.5% |
| Overall Length | 14 11/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 |
| Service Factor | 1.00 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.125" |
| Speed Range | 2000:1 CT |
| Thermal Protection | T-stat |
| Voltage | 230/460 |
| Warranty | 3 yr. |
| Ship weight (kg) | 32.4 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Overall Length | Price | |
|---|---|---|---|---|
 |
143THTN8028 | 13 11/16" | £1,581.52 | |
 |
145THTN8037 | 14 11/16" | £1,589.89 |
