LEESON 117270.00 CZ6T17VC56A General Purpose Motor 50-60 Hertz | AJ2QWU CZ6T17VC56A

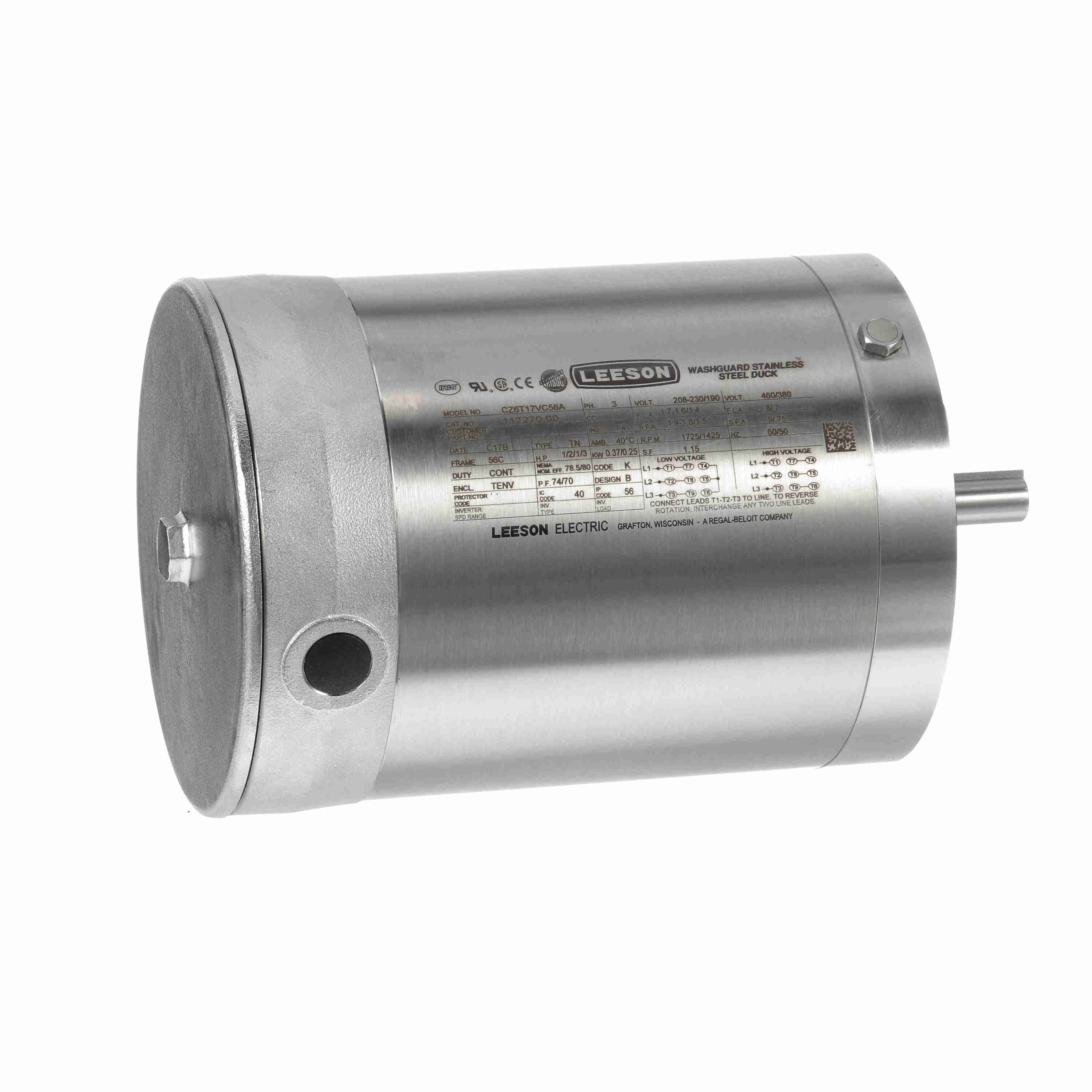

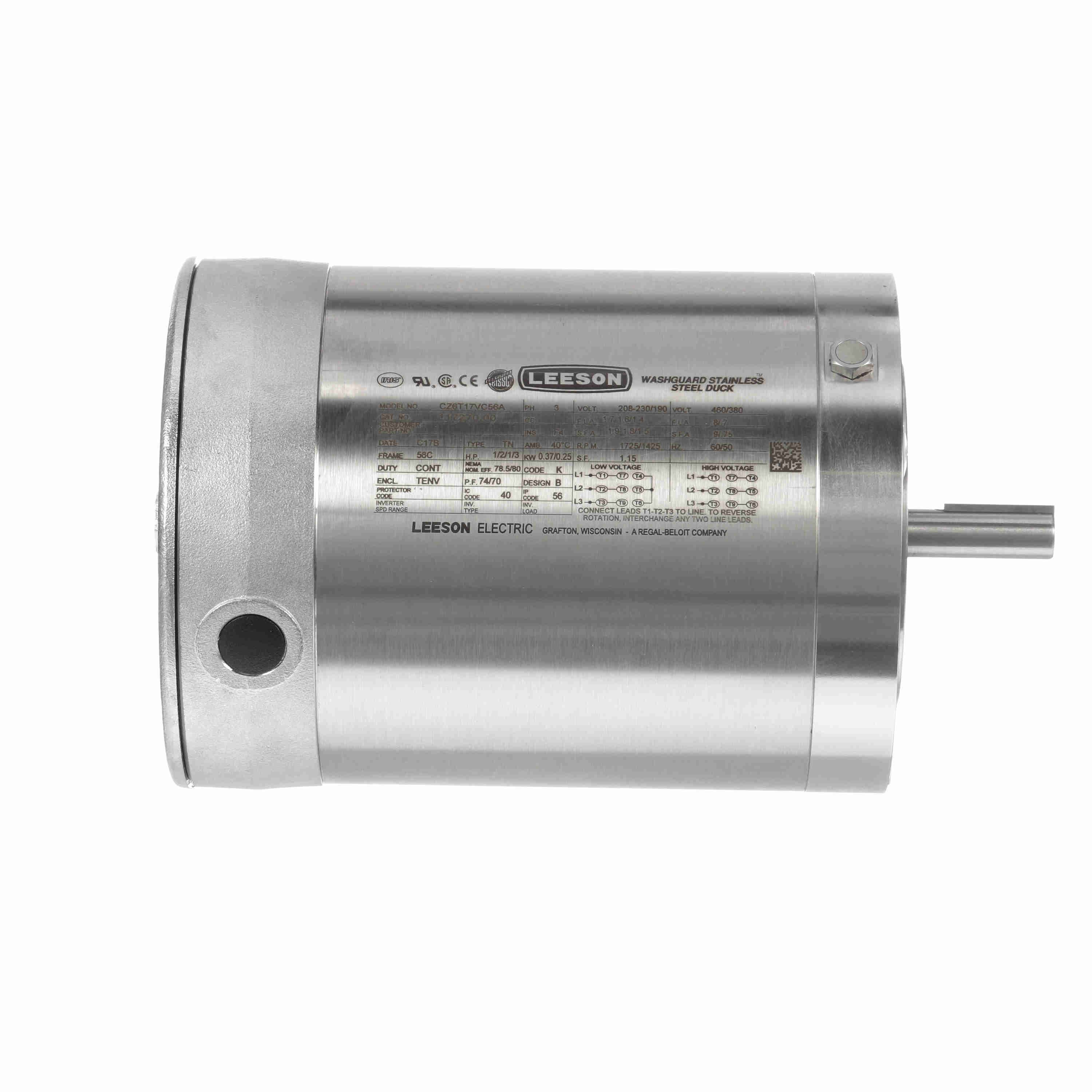

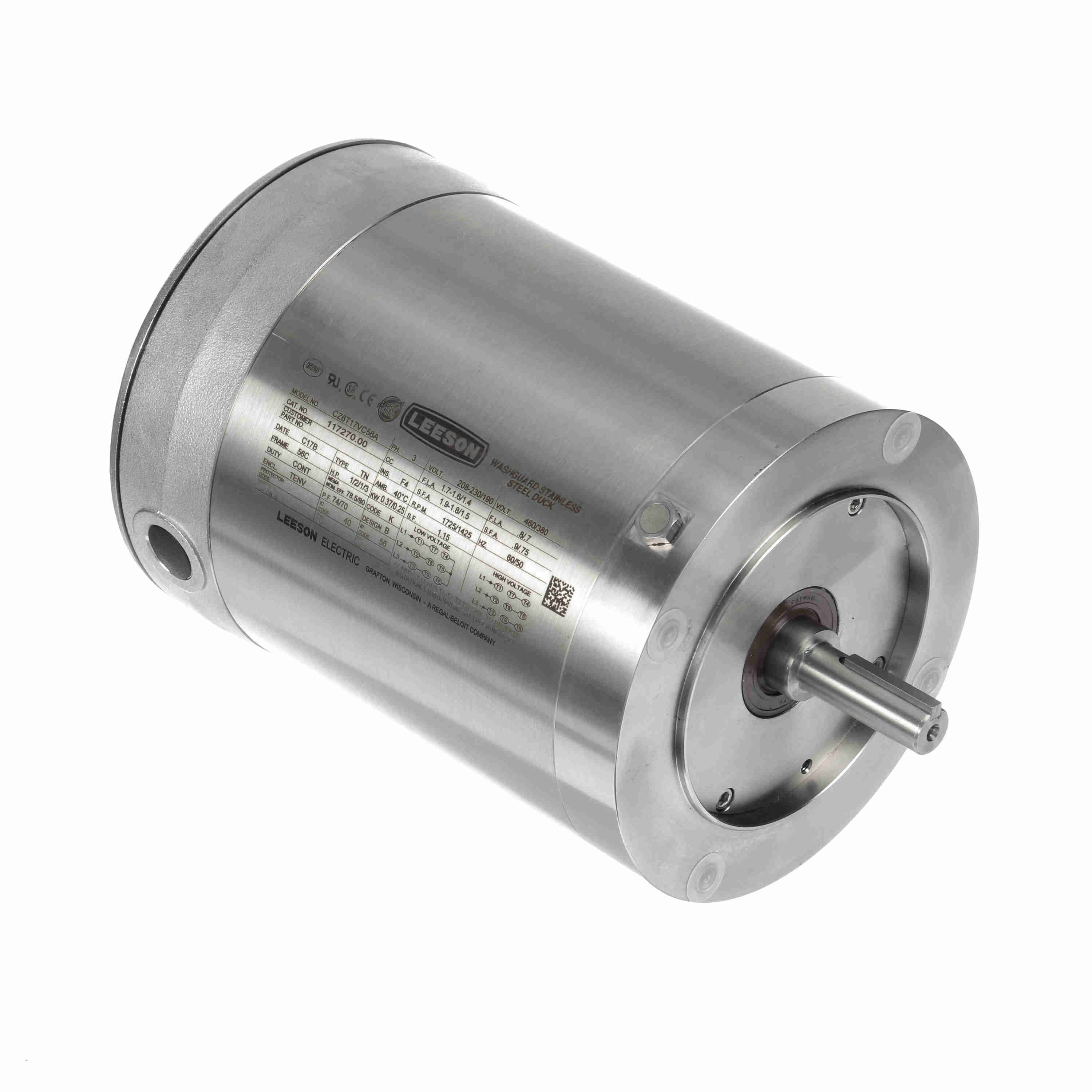

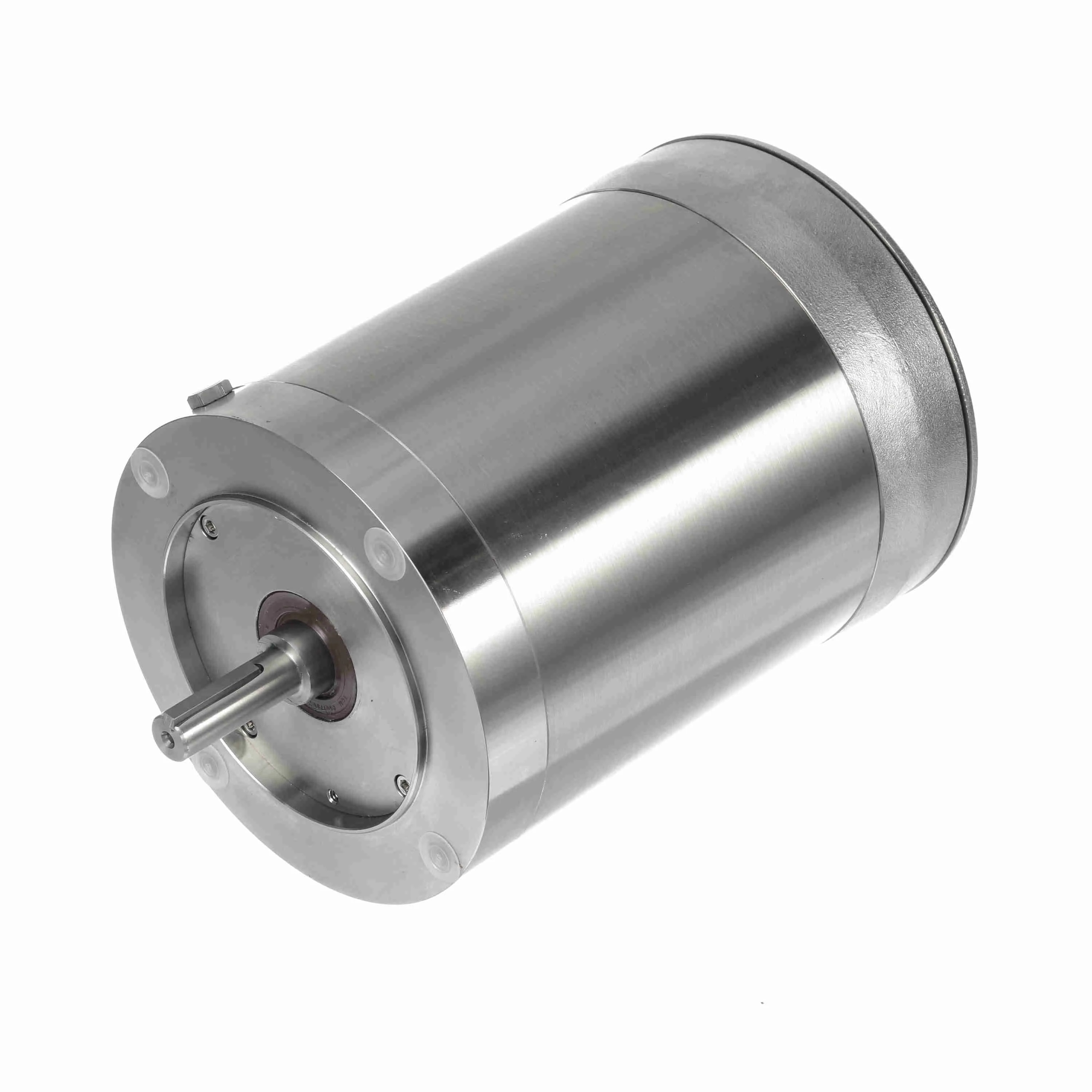

LEESON 117270.00 CZ6T17VC56A General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: AJ2QWU Model: 117270.00Cross Ref: 798KL5 / CZ6T17VC56A
See variants (13)
In Stock

Get it by Tuesday, Dec 31

£1,358.60 /unit (Inc. VAT)
Trade Prices Available
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemWashdown Motor
Assembly042541
CodeK
DesignB
DutyContinuous
EnclosureTENV
Frame56C
Frequency60 Hz
Full Load Amps1.7-1.6 / .8
Grease TypePolyrex Em
Hp1/2 / 1/3
Hz50/60
Insulation ClassF
Kw.37 / .246
LubricationPolyrex Em
Max. Ambient Temp.40
Motor Shaft RotationClockwise, Counter Clockwise
MountingRound
PackagingB
Phase3
Power0.37 kW
Power Factor74 / 70
RotationRev
Rpm1800 / 1500
Service Factor1.15
Shaft Dia.5/8"
TypeTn
Voltage208-230 / 460

Shipping Info:

Ship weight (kg) 17.24
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Bearing OPE: 6205
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 081120.01
    • Winding: T634250
    • GROUP: 3
    • S. F Amps: 1.9-1.8 / .9
    • Eff 100%: 78.5 / 80

Product Variants

ProductModelAssemblyEnclosureFrameFull Load AmpsHPkWPackagingPower FactorPrice
LEESON 103389.00 CZ4T17VC4A Washdown Motor 50-60 Hertz | AJ2PRF CZ4T17VC4A
 103389040027TENVS56C1.9-1.8 / 0.91/20.37B74£1,154.96
LEESON 117272.00 CZ6T17VC57A General Purpose Motor 50-60 Hertz | AJ2QWW CZ6T17VC57A
 117272042541TENV56C2.4-2.3 / 1.153/4 / 1/2.56 / .37B76£1,399.06
LEESON 117281.00 CZ6T34VC24A General Purpose Motor 50-60 Hertz | AJ2QXE CZ6T34VC24A
 117281-TENV56C2.6 / 1.31 / 3/4.75 / .56B85£1,362.06
LEESON 119497.00 CZ6T17WC57A Washdown Motor 50-60 Hertz | AJ2RDG CZ6T17WC57A
 119497042542TEFC56C3.2-3.2 / 1.61.75B68.5 / 78£1,679.33
LEESON 119498.00 CZ6T17WC52A Washdown Motor 50-60 Hertz | AJ2RDH CZ6T17WC52A
 119498042542TEFC56C4.6-4.8 / 2.41 1/2 / 11.12 / .75B67.7 / 67.5£1,675.73
LEESON 119499.00 CZ6T17WC58A Washdown Motor 50-60 Hertz | AJ2RDJ CZ6T17WC58A
 119499042542TEFC56C6-5.8 / 2.92 / 1 1/21.12 / 1.49B75.6 / 72£1,954.99
LEESON 122202.00 CZ143T17WC15A Washdown Motor 50-60 Hertz | AJ2RPQ CZ143T17WC15A
 122202042542TEFC143TC3.2-3.2 / 1.610.75B68.5 / 78£1,684.30
