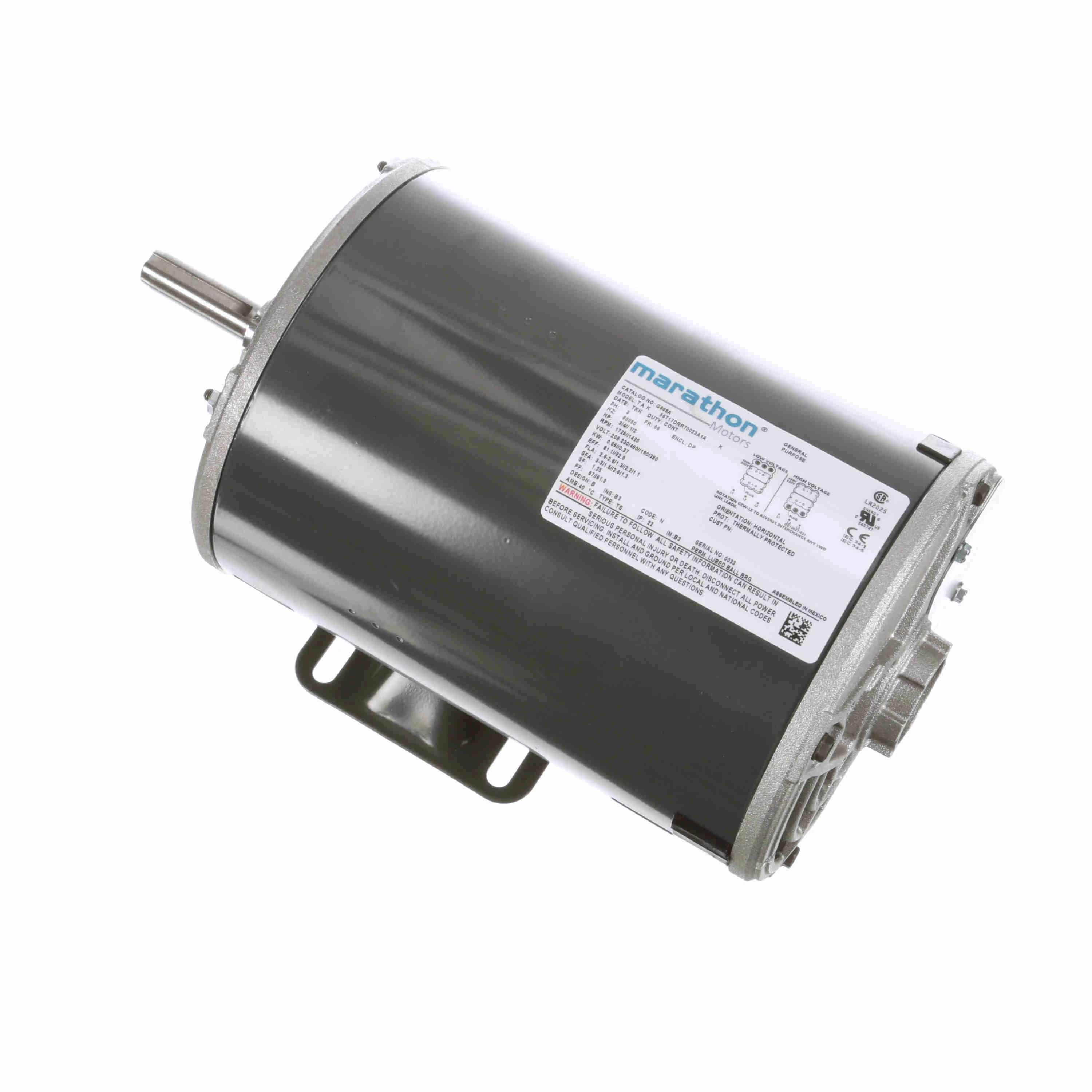

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Premium Efficient |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Full Load Amps | 2.6-2.6/1.3 |
| Hp | 3/4 |
| Hz | 50/60 |
| Insulation Class | B |
| Inverter Rated | No |
| Length Less Shaft | 10.625" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Manual |
| Nameplate Rpm | 1725 |
| Nominal Efficiency | 75.5% |
| Overall Length | 12.5" |
| Phase | 3 |
| Rpm Group | 1701-1800 |
| Rpm Range | 1701-1800 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Voltage | 208-230/460 |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Efficiency Group | Frame | Full Load Amps | HP | Hz | Length Less Shaft | Motor Thermal Protection | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048T17D11009 | - | 48 | 1/.5 | 1/4 | 60 | - | - | - | £357.12 | |
 |
056T17DRR70010A1 | Premium Efficient | 56 | 3.2-3.0/1.5 | 1 | 50/60 | 12.125" | Manual | 1725 | £672.64 | |
 |
143TTDR16056 | NEMA Premium Efficient | 143T | 3.4 | 1 | 60 | 11.75" | None | 1760 | £769.52 |
