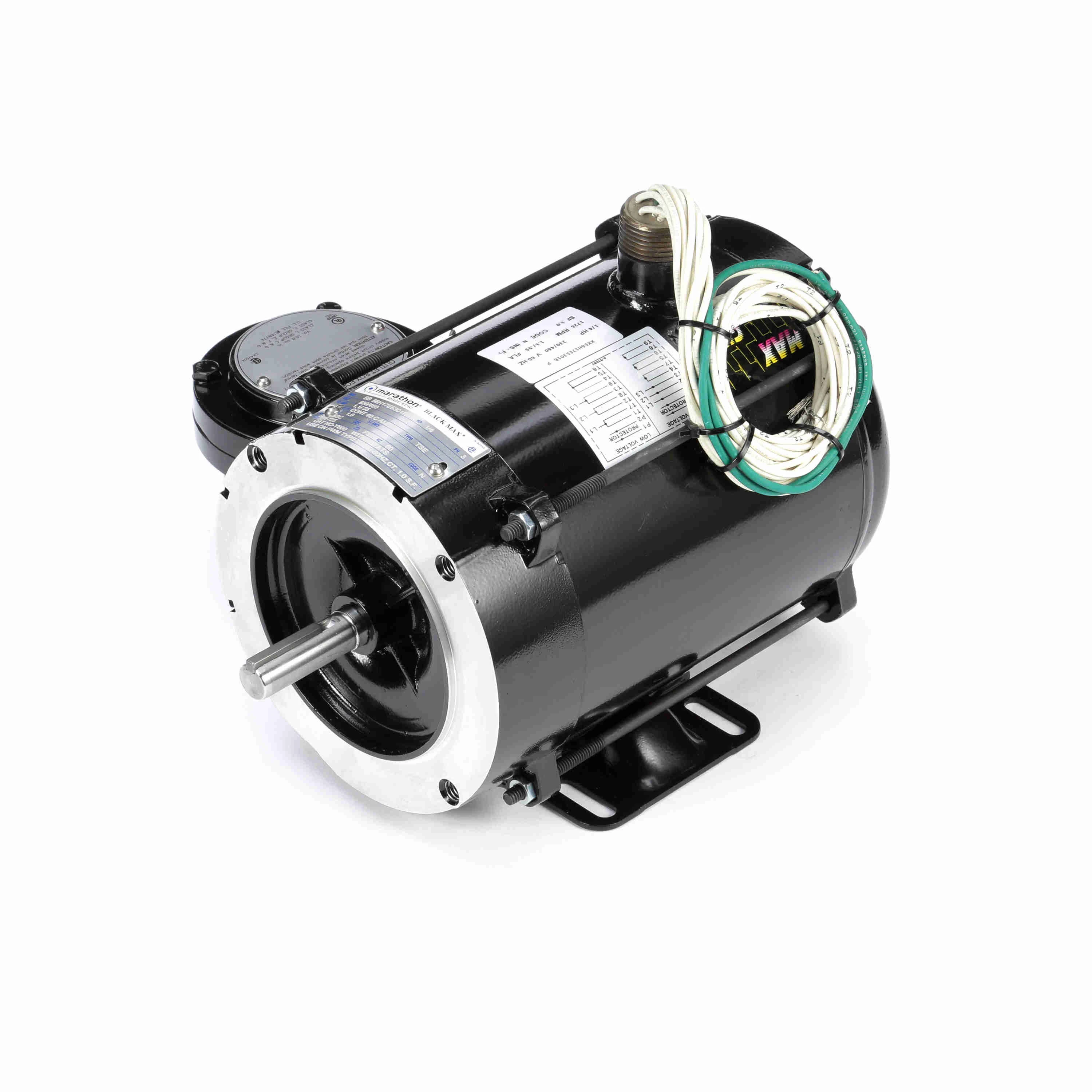

| Item | Vector Motor |
| Ambient Temp. Range | 40 Degrees C |
| Base | Rigid |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Standard |
| Enclosure | Totally Enclosed Nonventilated |
| Encoder Acceptable | No |
| Encoder Shaft | None |
| Finish | Black |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Full Load Amps | 1.1/.55 |
| Hp | 1/4 |
| Hz | 60 |
| Insulation Class | F |
| Insulation Feature | MAX GUARD Class F |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 3600 RPM |
| Motor Application | Cranes |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | 3-Phase |
| Mounting | C-Face |
| Mounting Position | Horizontal |
| Nameplate Rpm | 1725 |
| Nominal Efficiency | 0.71 |
| Overall Length | 12 |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 |
| Service Factor | 1.0 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Speed Range | 1000:1 CT |
| Thermal Protection | None |
| Torque | 0.75 lb.-ft. |
| Voltage | 230/460 |
| Warranty | 3 yr. |
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Efficiency Group | Full Load Amps | HP | Nominal Efficiency | Overall Length | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5302 | Standard | 1.2/0.6 | 1/3 | 0.745 | 12 | 1 lb.-ft. | £1,027.55 | |
 |
056H17E5303 | Standard | 1.6/0.8 | 1/2 | 0.8 | 12.5 | 1.52 lb.-ft. | £1,107.89 | |
 |
056H17E5304 | Standard | 2.4/1.2 | 3/4 | 0.825 | 12-/2 | 2.25 lb.-ft. | £1,226.53 | |
 |
056H17E5305 | Epact | 3.0/1.5 | 1 | 0.84 | 14 | 3 lb.-ft. | £1,343.28 |
