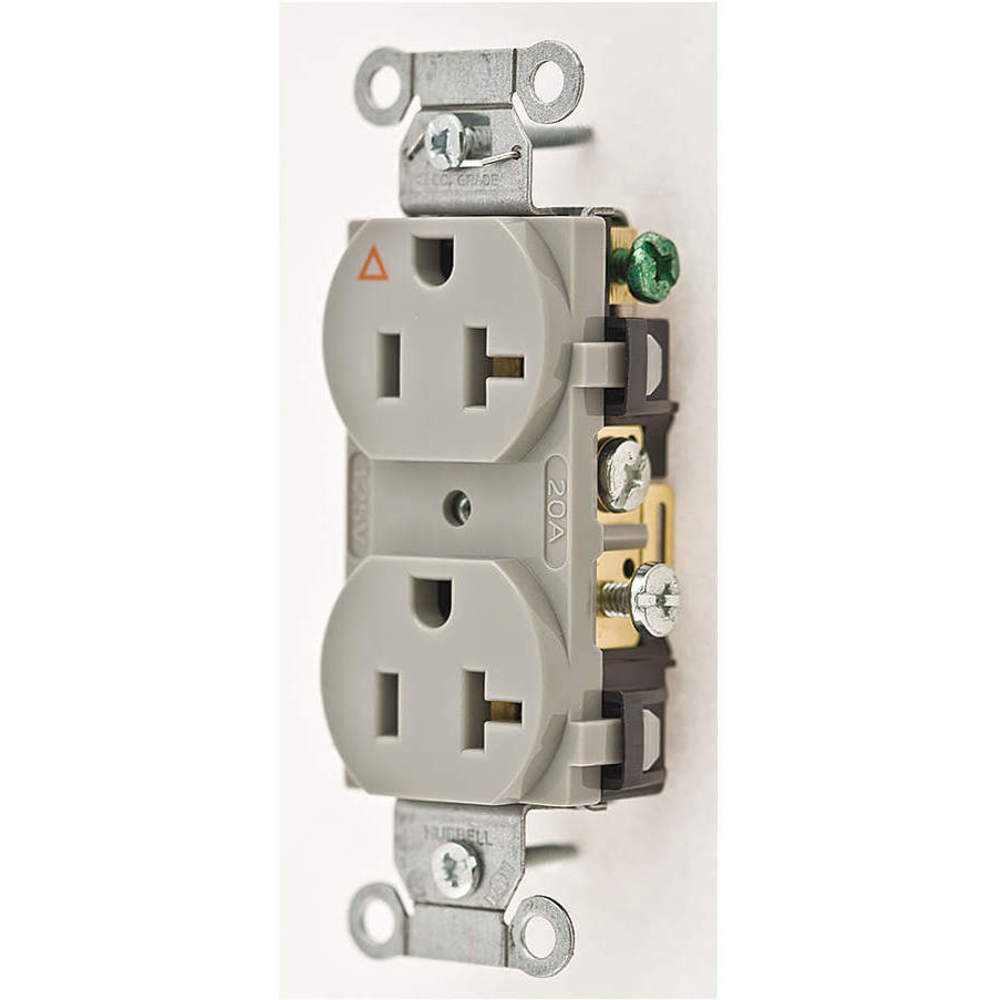

| Item | Receptacle |
| Amps | 20 |
| Application Environment | Commercial Environments |
| Color | Gray |
| Connectivity | Side Wired |
| Current Rating | 20 A |
| Diameter B-c-e | Side Wired |
| Dielectric Strength | Withstands 2,000V minimum |
| Grade | Commercial |
| Height | 3.28" |
| Hp | 1 |
| Length | 1.32" |
| Material | Nylon |
| Max. Hp | 1 |
| Mounting Type | Flush |
| Nema Configuration | 5-20R |
| Nema Rating | 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
| Outlet Type | Duplex |
| Phase | Single Phase |
| Power Indicator | No |
| Prod. Description | Smooth Face Isolated Ground |
| Surge Suppression | No |
| Voltage | 125 VAC |
| Voltage Rating | 125 V |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.06" |
| Wire Size | #12 AWG to #10 AWG |
| Wiring Method | Side |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 3.35 |
| Ship width (cm) | 2.69 |
| HS code | 8536698000 |
| Country of Origin | CN |
| Product | Model | Amps | Color | Connectivity | Current Rating | Hp | Max. Hp | Nema Configuration | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IG15CR | 15 | Orange | Side Wired Screw Terminals | 15 A | 1/2 | 0.5 | 5-15R | 5-15R | £11.80 | |
 |
IG15CRI | 15 | Ivory | Side Wired Screw Terminals | 15 A | 1/2 | 0.5 | 5-15R | 5-15R | £11.80 | |
 |
IG15CRWHI | 15 | White | Side Wired Screw Terminals | 15 A | 1/2 | 0.5 | 5-15R | 5-15R | £11.80 | |
 |
IG20CR | 20 | Orange | Side Wired | 20 A | 1 | 1 | 5-20R | 5-20R | £12.61 | |
 |
IG20CRI | 20 | Ivory | Side Wired | 20 A | 1 | 1 | 5-20R | 5-20R | £12.61 | |
 |
IG20CRLA | 20 | Light Almond | Side Wired | 20 A | 1 | 1 | 5-20R | 5-20R | £12.61 | |
 |
IG20CRWHI | 20 | White | Side Wired | 20 A | 1 | 1 | 5-20R | 5-20R | £12.61 |
