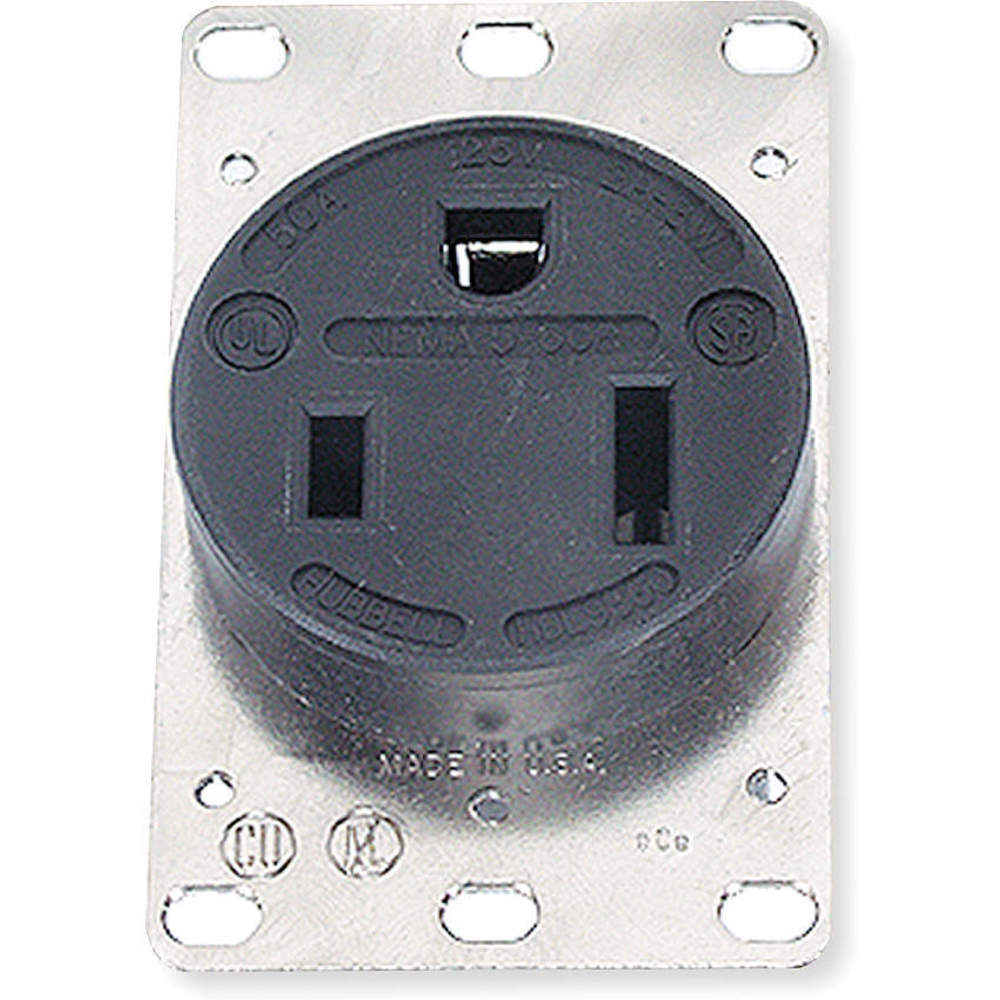

| Item | Flush Mount Receptacle |
| Amps | 50 |
| Application Environment | Industrial Environments |
| Color | Black |
| Connectivity | Back and Side Wired Screw Terminals |
| Current Rating | 50 A |
| Diameter B-c-e | Back and Side Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy |
| Grade | Specification |
| Height | 2.23" |
| Hp | 2 |
| Ip Rating | 20 |
| Length | 3.28" |
| Material | Thermoplastic/Composite |
| Max. Hp | 2 |
| Mounting Type | Flush |
| Nema Configuration | 5-50R |
| Nema Rating | 5-50R |
| Number Of Gangs | 1 |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire Grounding |
| Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
| Outlet Type | Single |
| Phase | Single Phase |
| Power Indicator | No |
| Surge Suppression | No |
| Voltage | 125 VAC |
| Voltage Rating | 125 V |
| Wattage | 6250 W |
| Weather Resistant | No |
| Width | 2.25" |
| Wire Size | #12 AWG to #4 AWG |
| Wiring Method | Back and Side |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.66 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 5.72 |
| HS code | 8536490080 |
| Country of Origin | US |
| Product | Model | Amps | Connectivity | Current Rating | Height | Hp | Length | Material | Max. Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL7301A | 60 | Back and Side Wired Screw Terminals | 60 A | 10" | 7.5 | - | Thermoplastic Stainless Steel | 7.5 | £158.20 | |
 |
HBL7962 | 50 | Back and Side Wired | 50 A | - | 3 | 2.5" | Thermoplastic | 3 | £38.41 | |
 |
HBL9350 | 30 | - | - | - | 2 L-L (2 L-N) | - | Phenolic | - | £48.01 | |
 |
HBL9430A | 30 | Back and Side Wired Screw Terminals | 30 A | 2.44" | 2 L-L (2 L-N) | 3.28" | Thermoplastic Polyester | 2 | £102.53 | |
 |
HBL9450A | 50 | Back and Side Wired Screw Terminals | 50 A | 2.44" | 3 L-L (2 L-N) | 3.28" | Thermoplastic/Composite | 3 | £215.26 | |
 |
HBL9460A | 60 | - | - | - | 3 L-L (2 L-N) | - | Thermoplastic Polyester | - | £146.96 | |
 |
HBL8430A | 30 | Back and Side Wired Screw Terminals | 30 A | - | 3 | 3.28" | Thermoplastic/Composite | 3 | £96.28 |
