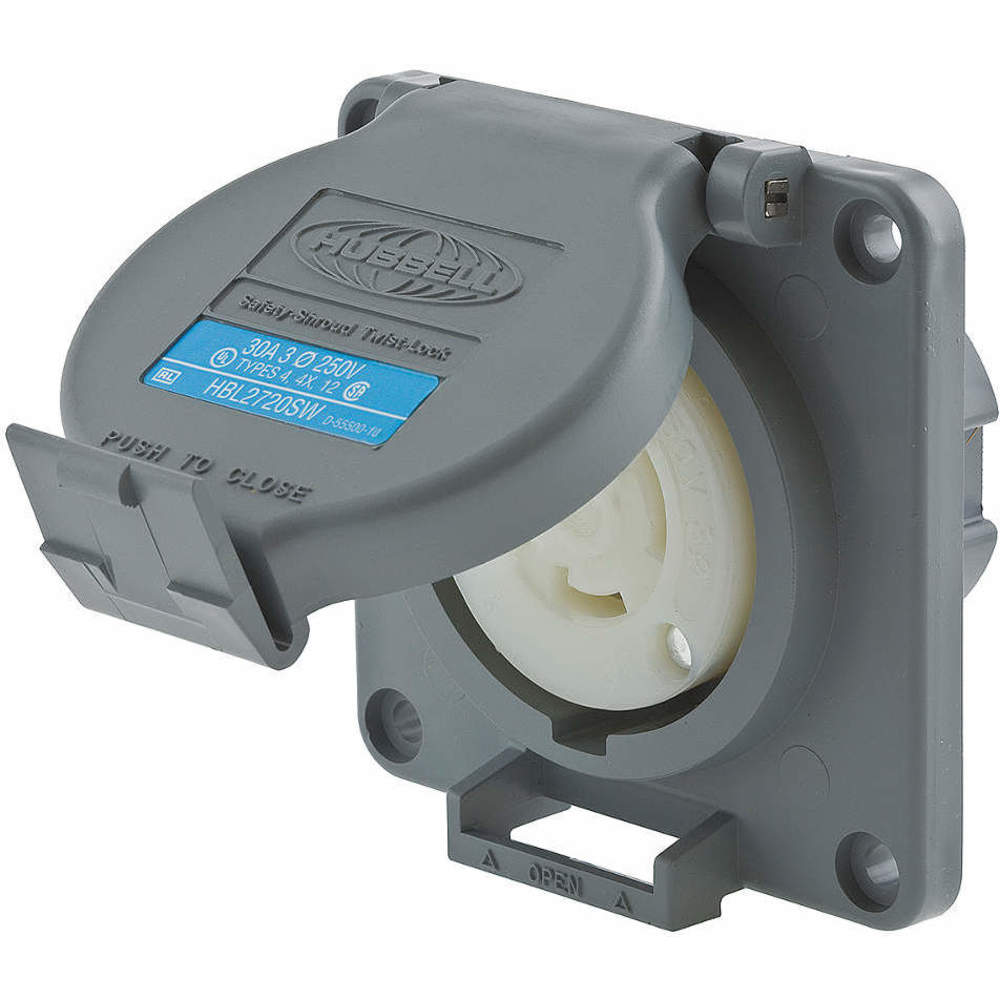

| Item | Watertight Shrouded Receptacle |
| Amps | 30 |
| Color | Gray |
| Connectivity | Back Wired Screw Terminals |
| Current Rating | 30 A |
| Diameter B-c-e | Back Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Grade | Industrial |
| Height | 2.9" |
| Hp | 3 |
| Ip Rating | 66 |
| Length | 3.75" |
| Material | Impact Modified PBT |
| Max. Hp | 3 |
| Mounting | Screw Mounting |
| Mounting Type | Flush Mount |
| Nema Configuration | L15-30R |
| Nema Rating | L15-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4-Wire |
| Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
| Phase | Three Phase |
| Type | Shrouded |
| Voltage | 250 VAC |
| Voltage Rating | 250 V |
| Wattage | 7500 W |
| Width | 3.75" |
| Wire Size | #16 AWG to #8 AWG |
| Wire Type | Standard |
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 9.53 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Connectivity | Current Rating | Height | Hp | Material | Max. Hp | Nema Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2610SW | 30 | Back Wired Screw Terminals | 30 A | 2.69" | 2 | Impact Modified PBT | 2 | L5-30R | £182.42 | |
 |
HBL2310SW | 20 | Screw Terminals | 20 A | 2.69" | 1 | Thermoplastic | 1 | L5-20R | £130.63 | |
 |
HBL2320SW | 20 | Back Wired Screw Terminals | 20 A | 2.69" | 2 | Thermoplastic | 2 | L6-20R | £130.63 | |
 |
HBL2330SW | 20 | Back Wired Screw Terminals | 20 A | 2.69" | 2 | Thermoplastic | 2 | L7-20R | £166.99 | |
 |
HBL2410SW | 20 | Back Wired Screw Terminals | 20 A | 2.9" | 2 L-L (1 L-N) | Thermoplastic | 2 | L14-20R | £172.16 | |
 |
HBL2420SW | 20 | Back Wired Screw Terminals | 20 A | 2.9" | 3 | Thermoplastic | 3 | L15-20R | £172.16 | |
 |
HBL2430SW | 20 | Screw Terminals | 20 A | 2.9" | 5 | Thermoplastic | 5 | L16-20R | £176.94 |
