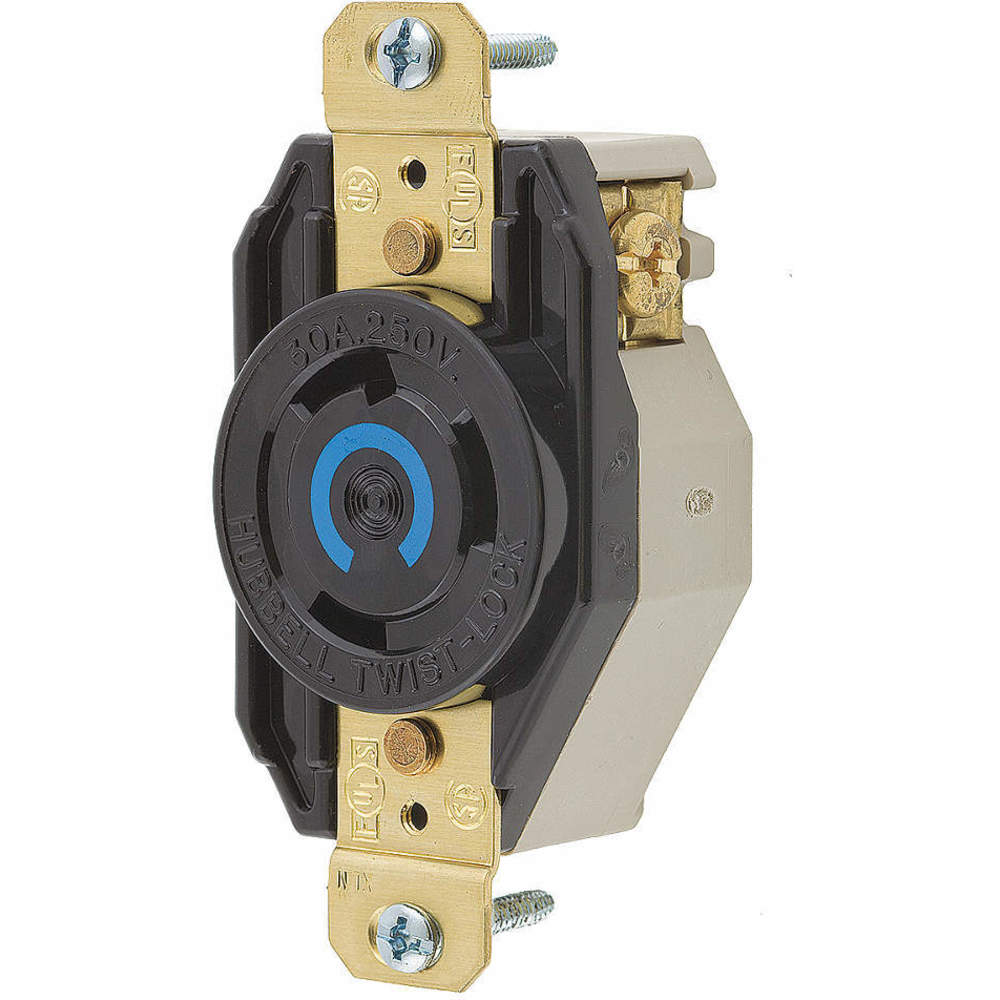

HUBBELL WIRING DEVICE-KELLEMS HBL2620 Twist-Lock Receptacle, 2-Pole, 250VAC, Screw Mounting | AE2YWD 5A086

HUBBELL WIRING DEVICE-KELLEMS HBL2620 Twist-Lock Receptacle, 2-Pole, 250VAC, Screw Mounting

Item: AE2YWD Model: HBL2620Cross Ref: 5A086
See variants (42)
In Stock

Get it by Tuesday, Dec 3

£47.20 /unit (Inc. VAT)
Trade Prices Available
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemReceptacle
Amps30
ColorBlack
ConnectivityBack and Side Wired Screw Terminals
Current Rating30 A
Diameter B-c-eBack and Side Wired Screw Terminals
Dielectric StrengthWithstands 2,000V minimum
GradeIndustrial
Height1.31"
Hp2
Ip Rating20
Length3.28"
MaterialNylon
Max. Hp2
MountingScrew Mounting
Mounting TypeFlush Mount
Nema ConfigurationL6-30R
Nema RatingL6-30R
Number Of Poles2
Number Of Wires3-Wire
Operating Temp.Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact
PhaseSingle Phase
TypeNon-Shrouded
Voltage250 VAC
Voltage Rating250 VAC
Wattage7500 W
Width1.7"
Wire Size#16 AWG to #8 AWG
Wire TypeStandard

Shipping Info:

Ship weight (kg) 0.11
Ship height (cm)3.33
Ship length (cm)8.33
Ship width (cm)4.32
HS code8536698000
Country of OriginUS

Product Details:

    • Hubbell Kellems HBL2620 industrial flush receptacle facilitates compatibility with all standard plugs to establish a connection with electric equipment and power supply devices
    • Features back and side wiring configuration for reducing the possibility of loosening the terminal connection
    • Twist-Lock technology where the connector plugs into the receptacle and then twists to lock
    • Comes with a face colour-coded systemfor voltage ratings for easy location and mating of proper devices
    • UL-listed and CSA-certified

Product Variants

ProductModelAmpsColorConnectivityCurrent RatingGradeHeightHpIp RatingPrice
HUBBELL WIRING DEVICE-KELLEMS HBL2330 Single Flush Receptacle, 20A, 277VAC, 2-Pole, 3-Wire Grounding | AB4CWT 1X978
 HBL233020BlackBack and Side Wired20 AIndustrial1.23"220£35.70
HUBBELL WIRING DEVICE-KELLEMS HBL2510 Single Flush Receptacle, 20A, 3-Phase, Wye 120/208VAC, 4-Pole, 5-Wire Grounding | AB4CWV 1X980
 HBL251020BlackBack and Side Wired Screw Terminals20 AIndustrial1.23"220£59.89
HUBBELL WIRING DEVICE-KELLEMS HBL2810 Flush Receptacle, 30A, 3-Phase, Wye 120/208VAC, 4-Pole, 5-Wire Grounding | AB4CWX 1X982
 HBL281030BlackBack and Side Wired Screw Terminals30 AIndustrial1.23"366£117.71
HUBBELL WIRING DEVICE-KELLEMS HBL2350 Single Flush Receptacle, 20A, 600VAC, 2-Pole, 3-Wire Grounding | AC8PWD 3D040
 HBL235020BlackBack and Side Wired Screw Terminals20 AIndustrial1.23"520£65.04
HUBBELL WIRING DEVICE-KELLEMS HBL2440 Single Flush Receptacle, 20A, 3 Phase, Wye 120/208VAC, 4-Pole | AC8PWP 3D053
 HBL244020BlackBack and Side Wired Screw Terminals20 AIndustrial1.23"244£54.17
HUBBELL WIRING DEVICE-KELLEMS HBL2740 Flush Receptacle, 30A, 3-Phase, Delta, 600VAC, 3-Pole, 4-Wire Grounding | AC8PXV 3D095
 HBL274030BlackBack and Side Wired Screw Terminals30 AIndustrial1.31"1020£76.38
HUBBELL WIRING DEVICE-KELLEMS HBL2750 Flush Receptacle, 30A, 3-Phase, Wye120/208VAC, 4-Pole, 4-Wire Non-Grounding | AC8PXZ 3D099
 HBL275030BlackBack and Side Wired30 AIndustrial1.31"320£79.69
