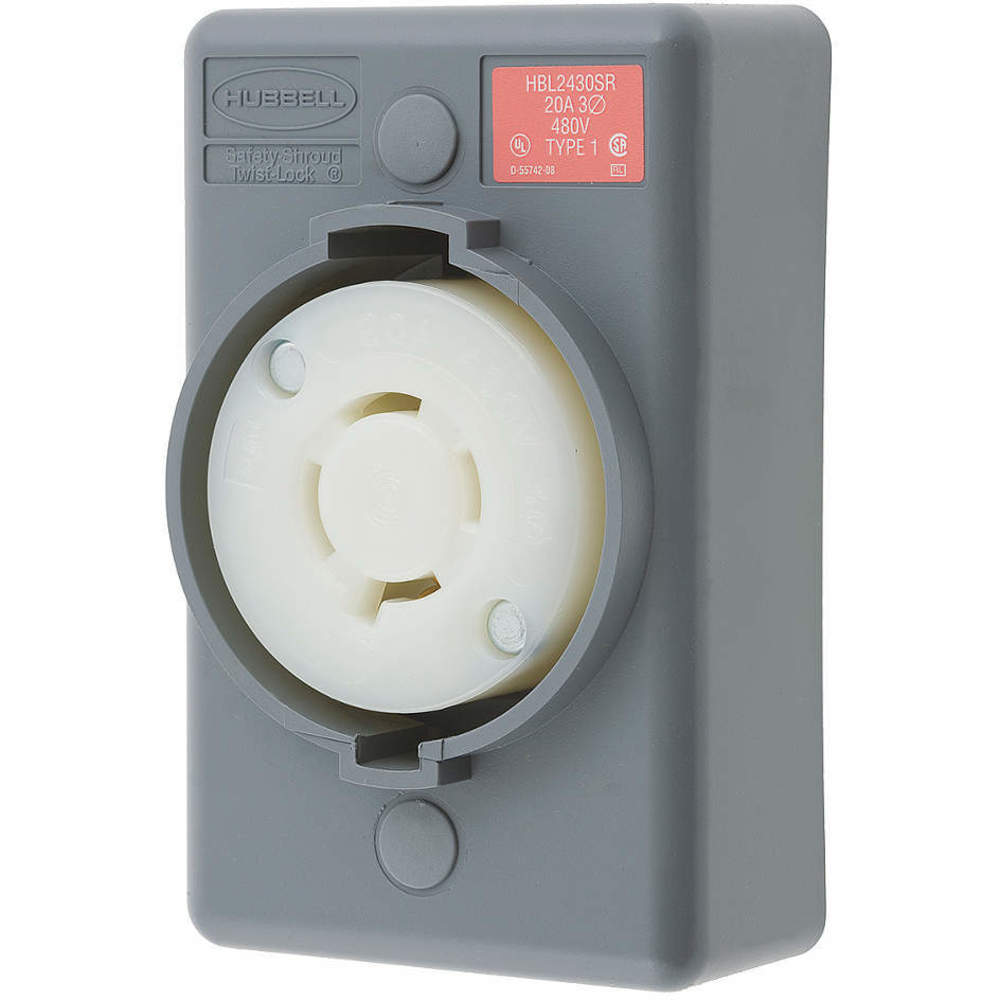

| Item | Surface Mount Shrouded Receptacle |
| Amps | 20 |
| Color | Gray |
| Connectivity | Back Wired Screw Terminals |
| Current Rating | 20 A |
| Diameter B-c-e | Back Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Grade | Industrial |
| Height | 1.71" |
| Hp | 5 |
| Ip Rating | 20 |
| Length | 4.56" |
| Material | Thermoplastic |
| Max. Hp | 5 |
| Mounting | Screw Mounting |
| Mounting Type | Surface Mount |
| Nema Configuration | L16-20R |
| Nema Rating | L16-20R |
| Number Of Gangs | 1-Gang |
| Number Of Poles | 3 |
| Number Of Wires | 4-Wire |
| Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
| Phase | Three Phase |
| Type | Shrouded |
| Voltage | 480 VAC |
| Voltage Rating | 3-Phase Delta 480 VAC |
| Wattage | 9600 W |
| Width | 2.84" |
| Wire Size | #16 AWG to #8 AWG |
| Wire Type | Standard |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 4.34 |
| Ship length (cm) | 11.58 |
| Ship width (cm) | 7.21 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Height | Hp | Ip Rating | Material | Max. Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2310SR | 20 | Gray | 20 A | 1.58" | 1 | 20 | Impact Modified PBT | 1 | £53.77 | |
 |
HBL2320SR | 20 | Gray | 20 A | 1.58" | 2 | 20 | Thermoplastic | 2 | £53.77 | |
 |
HBL2410SR | 20 | Gray | 20 A | 1.71" | 2 L-L (1 L-N) | 66 | Natural White Nylon | 2 | £74.50 | |
 |
HBL2420SR | 20 | Gray | 20 A | 1.71" | 3 | 20 | Thermoplastic | 3 | £75.22 | |
 |
HBL2510SR | 20 | Gray | 20 A | 1.71" | 2 | 20 | Impact Modified PBT | 2 | £82.33 | |
 |
HBL2610SR | 30 | Gray | 30 A | 1.58" | 1 | 20 | Impact Modified PBT | 2 | £75.61 | |
 |
HBL2620SR | 30 | Gray, White | 30 A | 1.58" | 2 | 20 | Impact Modified PBT | 2 | £81.91 |
