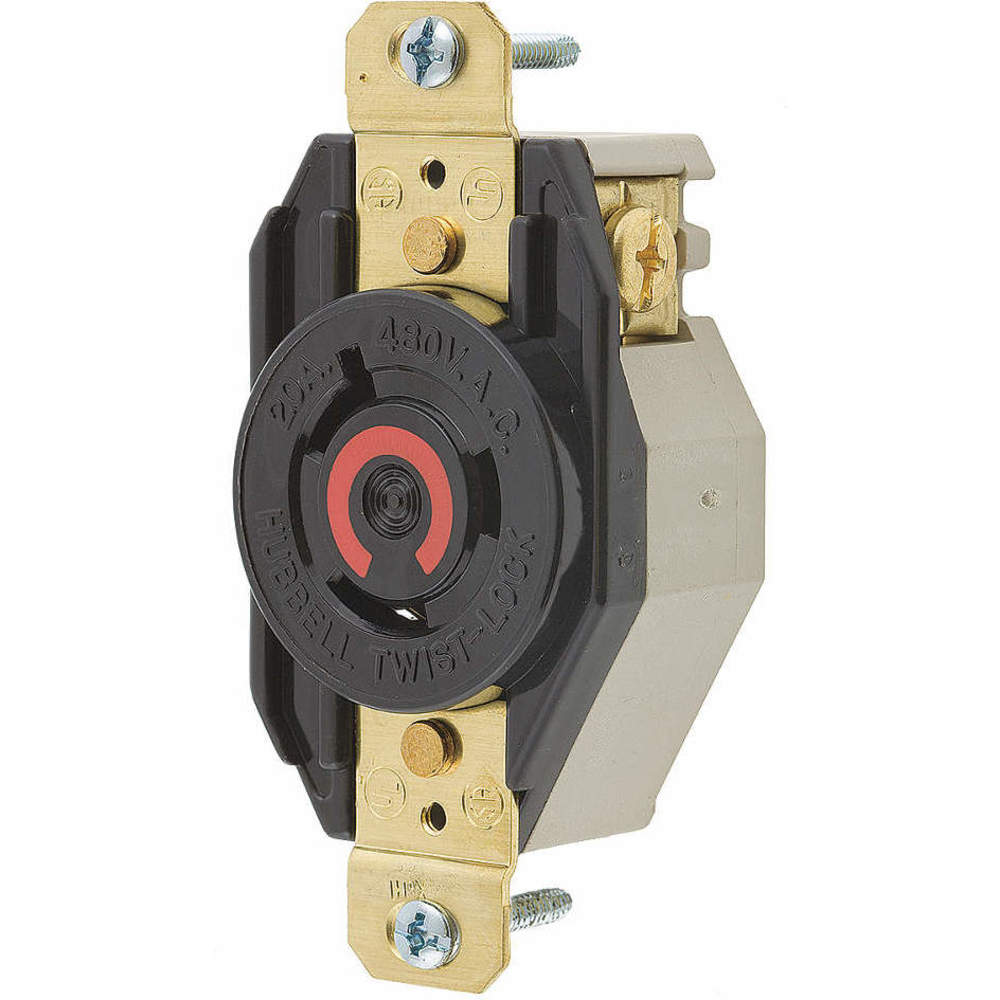

| Item | Receptacle |
| Amps | 20 |
| Color | Black |
| Connectivity | Back and Side Wired Screw Terminals |
| Current Rating | 20 A |
| Diameter B-c-e | Back and Side Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Grade | Industrial |
| Height | 1.23" |
| Hp | 5 |
| Ip Rating | 20 |
| Length | 3.28" |
| Material | Nylon |
| Mounting | Screw Mounting |
| Mounting Type | Flush Mount |
| Nema Configuration | L8-20R |
| Nema Rating | L8-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3-Wire |
| Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
| Phase | Single Phase |
| Type | Non-Shrouded |
| Voltage | 480 VAC |
| Voltage Rating | 480 VAC |
| Wattage | 9600 W |
| Width | 1.7" |
| Wire Size | #16 AWG to #8 AWG |
| Wire Type | Standard |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.12 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.32 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Connectivity | Current Rating | Grade | Height | Hp | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2330 | 20 | Black | Back and Side Wired | 20 A | Industrial | 1.23" | 2 | 20 | £35.70 | |
 |
HBL2510 | 20 | Black | Back and Side Wired Screw Terminals | 20 A | Industrial | 1.23" | 2 | 20 | £59.89 | |
 |
HBL2810 | 30 | Black | Back and Side Wired Screw Terminals | 30 A | Industrial | 1.23" | 3 | 66 | £117.71 | |
 |
HBL2350 | 20 | Black | Back and Side Wired Screw Terminals | 20 A | Industrial | 1.23" | 5 | 20 | £65.04 | |
 |
HBL2440 | 20 | Black | Back and Side Wired Screw Terminals | 20 A | Industrial | 1.23" | 2 | 44 | £54.17 | |
 |
HBL2740 | 30 | Black | Back and Side Wired Screw Terminals | 30 A | Industrial | 1.31" | 10 | 20 | £76.38 | |
 |
HBL2750 | 30 | Black | Back and Side Wired | 30 A | Industrial | 1.31" | 3 | 20 | £79.69 |
