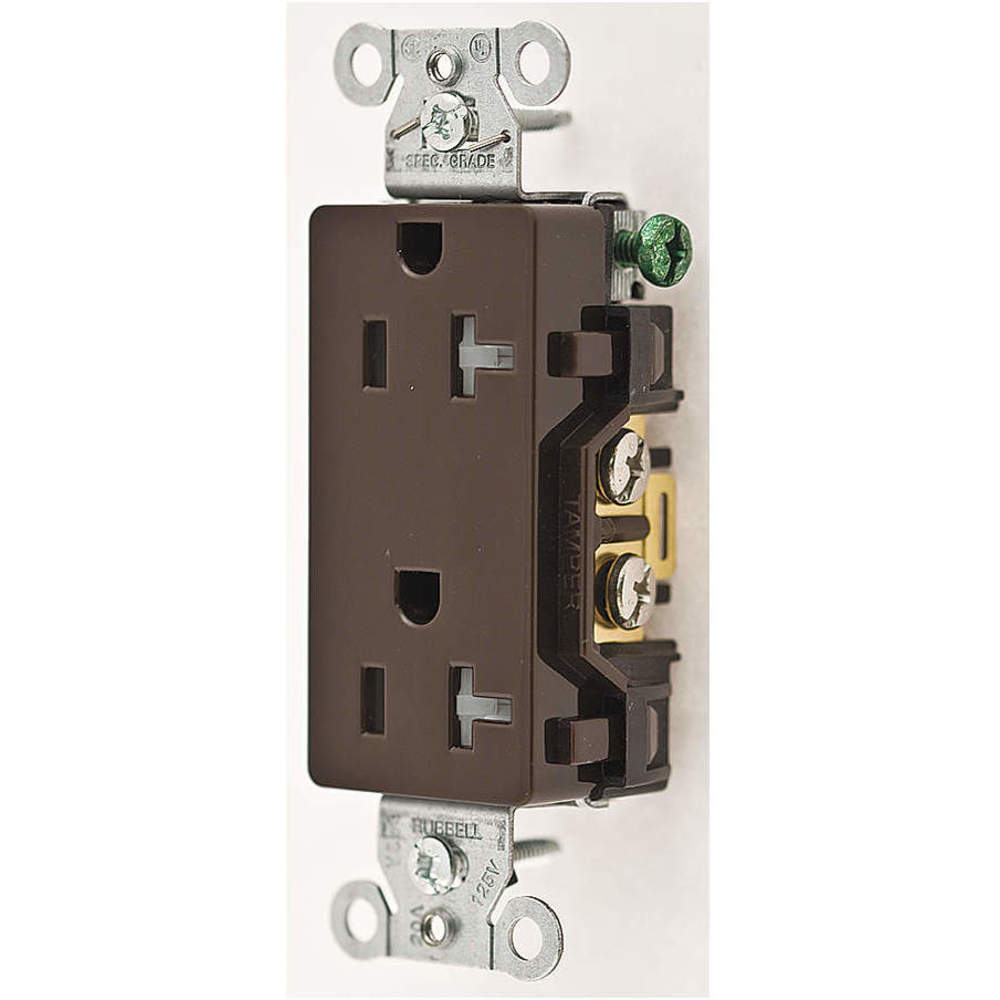

| Item | Receptacle |
| Amps | 20 |
| Application Environment | Commercial Environments |
| Color | Brown |
| Connectivity | Back and Side Wired |
| Current Rating | 20 A |
| Diameter B-c-e | Back and Side Wired |
| Dielectric Strength | Withstands 2,000V minimum |
| Grade | Commercial |
| Height | 1.29" |
| Hp | 1 |
| Length | 3.28" |
| Material | Nylon |
| Max. Hp | 1 |
| Mounting Type | Flush |
| Nema Configuration | 5-20R |
| Nema Rating | 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
| Outlet Type | Decorator |
| Phase | Single Phase |
| Power Indicator | No |
| Prod. Description | Tamper Resistant and Smooth Face |
| Surge Suppression | No |
| Voltage | 125 VAC |
| Voltage Rating | 125 V |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.14" |
| Wire Size | #12 AWG to #10 AWG |
| Wiring Method | Back and Side |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 2.9 |
| HS code | 8536698000 |
| Country of Origin | CN |
| Product | Model | Amps | Color | Current Rating | Height | Hp | Length | Max. Hp | Nema Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DR15WHITR | 15 | White | 15 A | 3.28" | 1/2 | 1.56" | 0.5 | 5-15R | £15.14 | |
 |
DR20BLKTR | 20 | Black | 20 A | 1.29" | 1 | 3.28" | 1 | 5-20R | £16.78 | |
 |
DR20GRYTR | 20 | Gray | 20 A | 1.29" | 1 | 3.28" | 1 | 5-20R | £16.78 | |
 |
DR20ITR | 20 | Ivory | 20 A | 1.29" | 1 | 3.28" | 1 | 5-20R | £16.78 | |
 |
DR20WHITR | 20 | White | 20 A | 1.29" | 1 | 3.28" | 1 | 5-20R | £16.78 |
