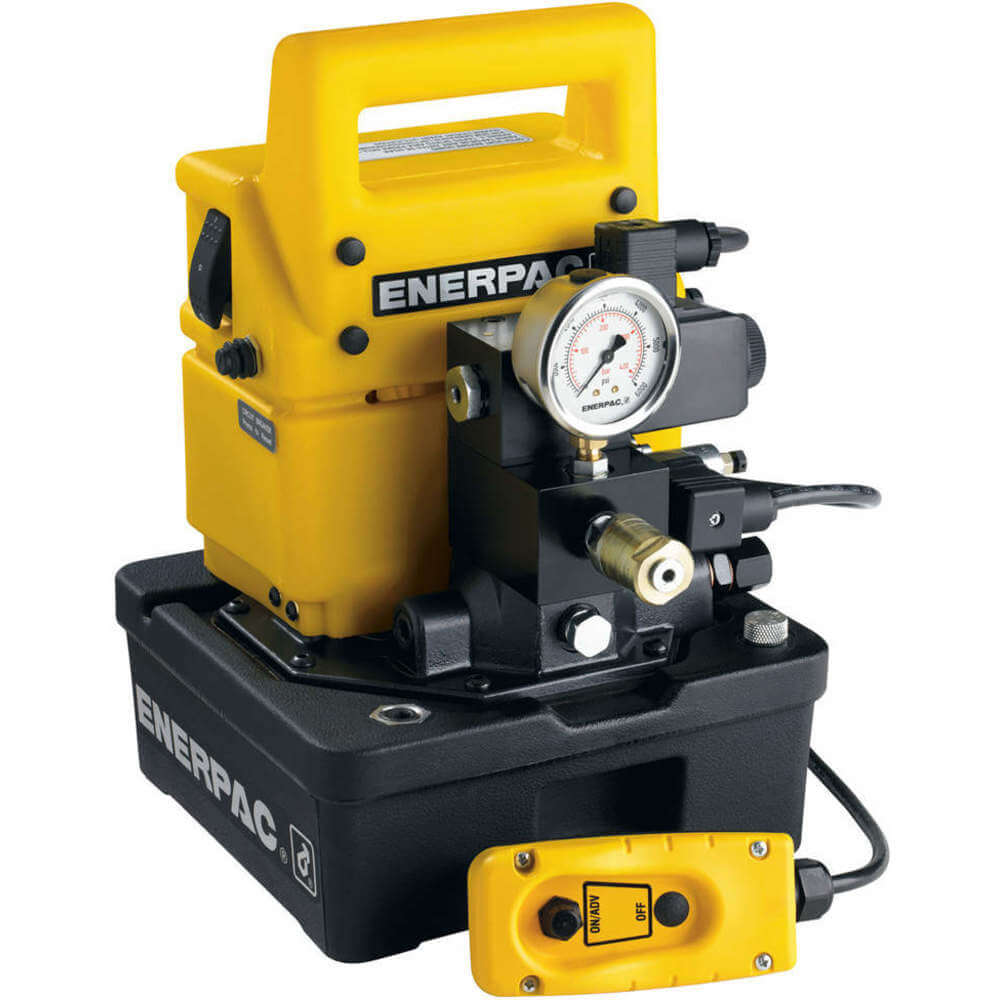

| Item | Hydraulic Electric Pump |
| Amps Ac | 9.5A |
| Application | Pressurize Fixtures For Workholding |
| Control Pendant Voltage | 24V AC |
| Control Valve | Dump |
| Control Valve Function | Advance, Retract |
| Current Drawn | 9.5A |
| Cylinder Compatibility | Single Acting |
| Dimension A | 9.62" |
| Dimension B | 9.62" |
| Dimension C | 14 1/4" |
| Dimension D | 4" |
| Dimension E | 4 18/25" |
| Dimension F | 8" |
| Dimension H | 2/5" |
| Dimension J | 5 1/4" |
| Duty Cycle | Intermittent |
| Hp | 1/2 hp |
| Max. Operating Pressure | 5000 psi |
| Motor Type | Universal |
| Oil Displacement @ 1000 Psi | 30 cu. in./min. |
| Oil Displacement @ 5000 Psi | 25 cu. in./min. |
| Overall Height | 14.3" |
| Power Source | Electric |
| Pressure Rating 1st Stage | 200 psi |
| Pressure Rating 2nd Stage | 5000 psi |
| Reservoir Material | Polyethylene |
| Sound Level | 85 dBA |
| Type | Single Acting |
| Voltage | 115V AC |
| Ship weight (kg) | 15.88 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 24.43 |
| Ship width (cm) | 24.43 |
| HS code | 8413500080 |
| Country of Origin | US |
| Product | Model | Application | Valve Function | Price | |
|---|---|---|---|---|---|
 |
WUD1300B | Dump and Hold | Advance/ Hold/ Retract | £4,880.70 |
