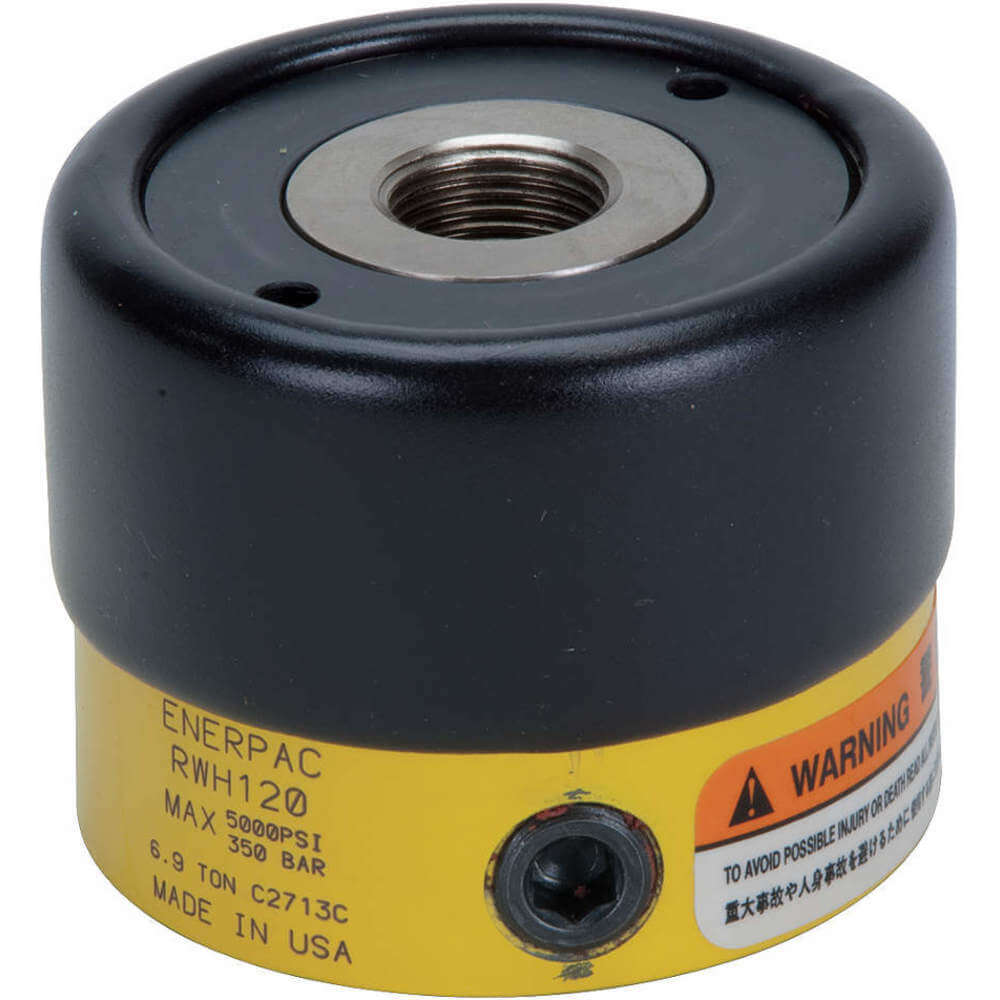

| Item | Hydraulic Cylinder |
| Center Hole Dia. | 0.77" |
| Cylinder Effective Area Advance | 2.76 sq. in. |
| Cylinder Return Type | Single-Acting, Spring Return |
| Dimension A | 2.54" |
| Dimension B | 2.22" |
| Dimension D | 2 3/4"-16 UN |
| Dimension D1 | 2.75" |
| Dimension F | 1.38" |
| Dimension H | 0.39" |
| Dimension J | 0.19" |
| Dimension K | 3/4"-16 UNF |
| Dimension T | 0.61" |
| Dimension U | 2" |
| Dimension V | 1/3"-18 UNC |
| Dimension W | 0.68" |
| Dimension Z | 0.25" |
| Material | Steel |
| Max. Cylinder Capacity Advance | 13800 lbs. |
| Max. Operating Pressure | 5000 psi |
| Oil Capacity Advance | 0.86 cu. in. |
| Plunger Type | Hollow |
| Stroke | 0.32" |
| Ship weight (kg) | 1.41 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.43 |
| HS code | 8412210075 |
| Country of Origin | CN |
| Model | Cylinder Effective Area Advance | Dimension A | Dimension B | Dimension D | Dimension D1 | Dimension F | Dimension H | Dimension J | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RWH121 | 2.76 sq. in. | 4.24" | 3.22" | 2 3/4"-16 UN | 2.75" | 1.38" | 0.53" | 0.19" | £994.01 | |
| RWH20 | 1.33 sq. in. | 2.39" | 2.06" | 1 7/8"-16 UN | 1.79" | 1" | 0.28" | 0.12" | £444.22 | |
| RWH301 | 7.22 sq. in. | 6.52" | 5.52" | 4 1/2"-12 UN | 4.49" | 2.54" | 0.85" | 0.19" | £1,481.05 |
