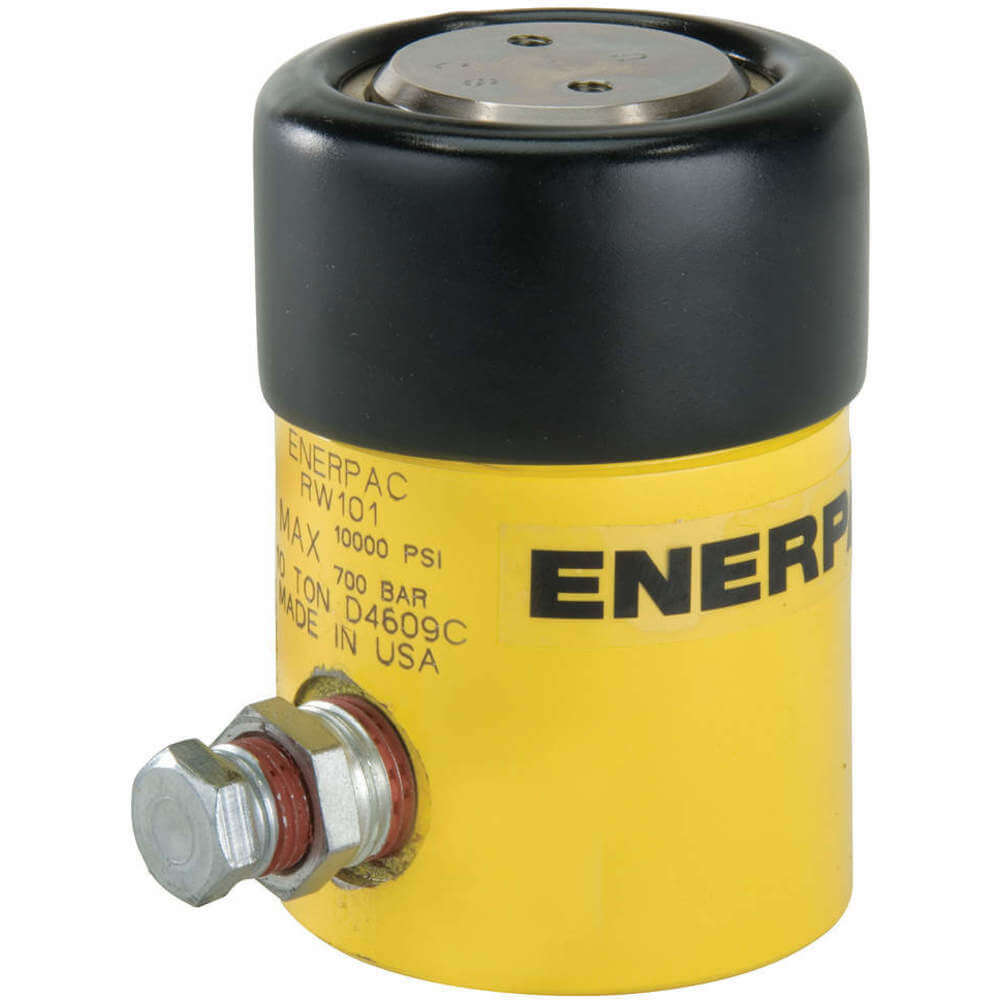

| Item | Hydraulic Cylinder |
| Cylinder Capacity Advance At 5000 Psi | 11180 lbs. |
| Cylinder Effective Area Advance | 2.23 sq. in. |
| Cylinder Return Type | Single-Acting, Spring Return |
| Dimension A | 4.53" |
| Dimension B | 3.54" |
| Dimension C | 3.41" |
| Dimension D | 2.25" |
| Dimension D1 | 2 1/4"-14 UNS |
| Dimension F | 1.5" |
| Dimension G | 1/4"-18 |
| Dimension H | 0.75" |
| Dimension K | #10-24 UNC |
| Dimension L | 1.15" |
| Dimension T | 0.24" |
| Dimension U | 1.56" |
| Dimension V | 1/3"-18 UNC |
| Dimension Z | 0.49" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Min. Operating Pressure | 600 psi |
| Oil Capacity Advance | 2.23 cu. in. |
| Plunger Type | Solid |
| Stroke | 0.99" |
| Ship weight (kg) | 1.59 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.68 |
| HS code | 8431100090 |
| Country of Origin | CN |
| Product | Model | Cylinder Capacity Advance At 5000 Psi | Cylinder Effective Area Advance | Dimension A | Dimension B | Dimension C | Dimension D | Dimension D1 | Dimension F | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RW104 | 11180 lbs. | 2.23 sq. in. | 10.97" | 6.79" | 6.53" | 2.25" | 2 1/4"-14 UNS | 1.5" | £570.71 | |
 |
RW106 | 11180 lbs. | 2.23 sq. in. | 15.82" | 9.71" | 9.5" | 2.25" | 2 1/4"-14 UNS | 1.5" | £638.44 | |
 |
RW50 | 4970 lbs. | 0.99 sq. in. | 2.24" | 1.62" | - | 1.62" | 2.32" | 1" | £411.35 | |
 |
RW51 | 4970 lbs. | 0.99 sq. in. | 5.42" | 4.41" | 4.09" | 1.5" | 1 1/5"-16 UN | 1" | £431.27 | |
 |
RW53 | 4970 lbs. | 0.99 sq. in. | 9.73" | 6.56" | 6.25" | 1.5" | 1 1/5"-16 UN | 1" | £460.15 | |
 |
RW55 | 4970 lbs. | 0.99 sq. in. | 13.74" | 8.57" | 8.25" | 1.5" | 1 1/5"-16 UN | 1" | £471.11 | |
 |
RW102 | 11180 lbs. | 2.23 sq. in. | 6.97" | 4.79" | 4.53" | 2.25" | 2 1/4"-14 UNS | 1.5" | £511.94 |
