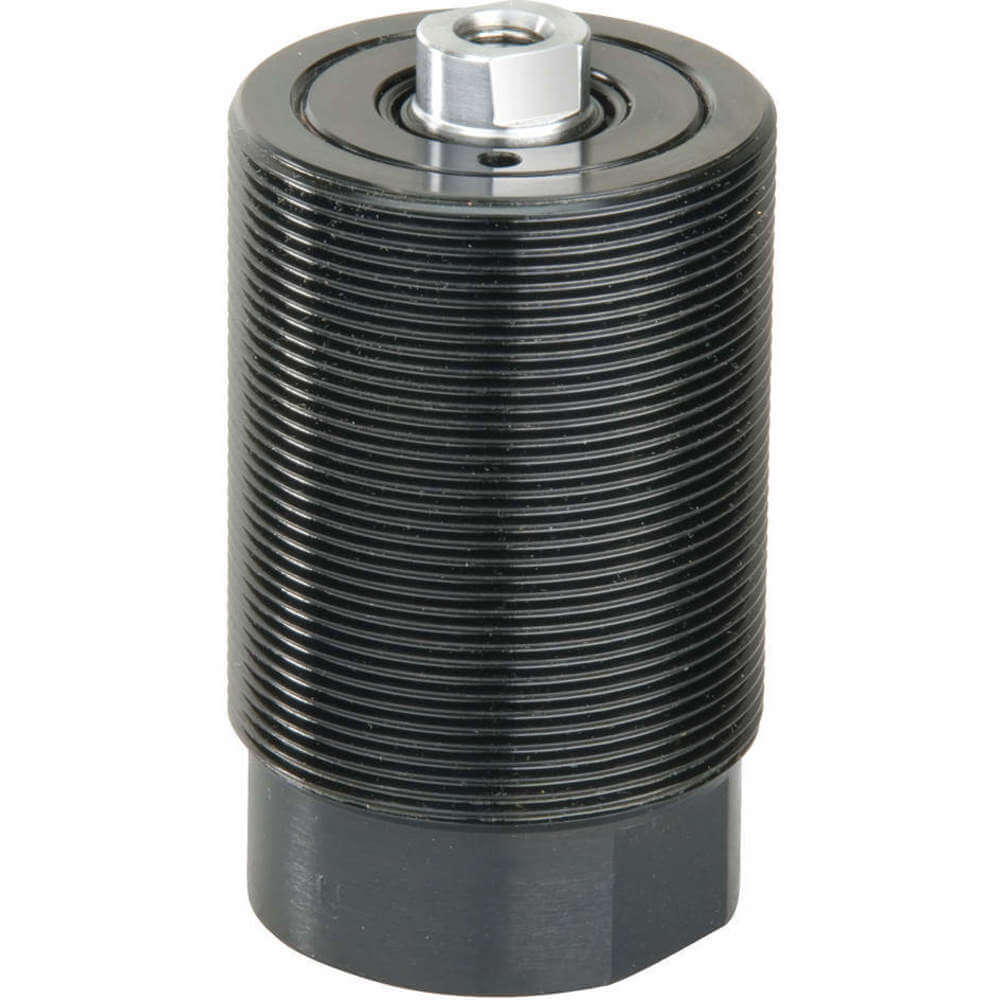

| Item | Hydraulic Cylinder |
| Cylinder Effective Area Advance | 0.77 sq. in. |
| Cylinder Effective Area Retract | 0.46 sq. in. |
| Cylinder Return Type | Double Acting, Hydraulic Return |
| Dimension A | 4.21" |
| Dimension B | 3.23" |
| Dimension C | 2.97" |
| Dimension C1 | 0.63" |
| Dimension D | 1 7/8"-16 UN |
| Dimension D1 | 1.73" |
| Dimension E | 0.63" |
| Dimension E1 | 0.59" |
| Dimension F | 1.61" |
| Dimension K | 1/3"-24 UNF |
| Dimension L Retract | 0.53" |
| Dimension M Extend | 0.39" |
| Dimension P | 0.26" |
| Dimension S | 0.5" |
| Dimension T | 0.47" |
| Material | Steel |
| Max. Cylinder Capacity Advance | 3900 lbs. |
| Max. Cylinder Capacity Retract | 2330 lbs. |
| Max. Operating Pressure | 5000 psi |
| Oil Capacity Advance | 0.78 cu. in. |
| Oil Capacity Retract | 0.46 cu. in. |
| Plunger Type | Solid |
| Stroke | 0.98" |
| Ship weight (kg) | 1.03 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.43 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Cylinder Effective Area Advance | Cylinder Effective Area Retract | Dimension A | Dimension B | Dimension C | Dimension C1 | Dimension D | Dimension D1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDT18131 | 0.77 sq. in. | 0.46 sq. in. | 3.19" | 2.68" | 2.42" | 0.63" | 1 7/8"-16 UN | 1.73" | £291.83 | |
 |
CDT27151 | 1.22 sq. in. | 0.82 sq. in. | 3.37" | 2.8" | 2.54" | 0.67" | 2 1/4"-16 UN | 2.02" | £378.48 | |
 |
CDT27251 | 1.22 sq. in. | 0.82 sq. in. | 4.2" | 3.23" | 2.97" | 0.67" | 2 1/4"-16 UN | 2.02" | £414.34 |
