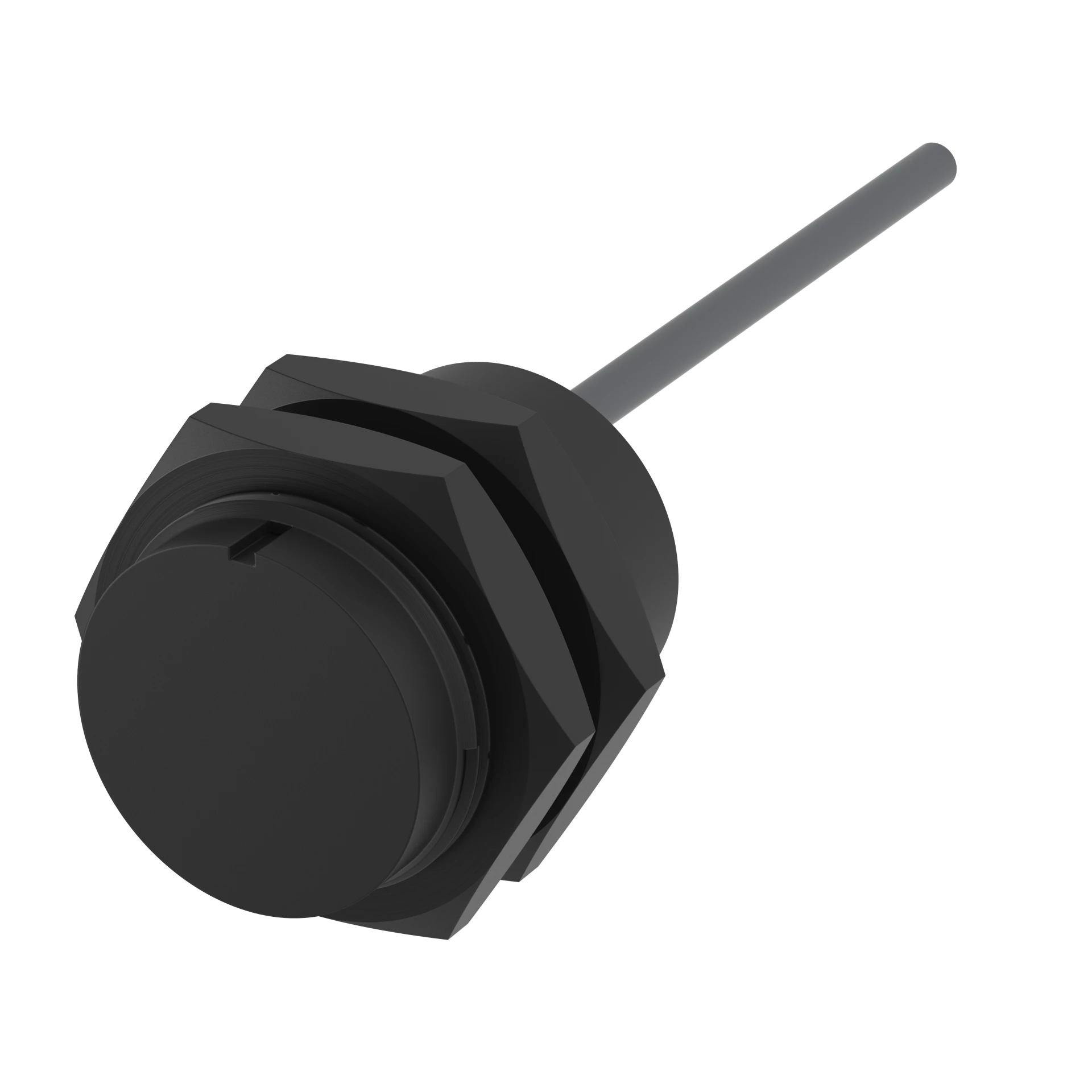

| Item | Sensor |
| Actuation Type | Front |
| Assured Switch Off Distance | 16 mm |
| Assured Switching Distance | 4 mm |
| Cable Color | Grey |
| Cable Length | 1 m |
| Cable Material | PVC |
| Cable Size | 4 mm x 0.25 mm |
| Cable Type | LiYY |
| Cannot Be Mounted Flush | Yes |
| Contact Form | NO/ NC |
| Degree Of Pollution | 3 |
| Housing Color | Silver |
| Housing Design | Cylindrical |
| Housing Material | PBT |
| Installation | Arbitrary |
| Ip Rating | Ip67 |
| Led Display | No |
| Max. Cable Temp. Range, Fixed Installation | 70 Deg. C |
| Max. Cable Temp. Range, Moving | 70 Deg. C |
| Max. Operating Temp. | 75 Deg. C |
| Max. Switching Power | 3W |
| Max. Switching Voltage | 28.8V DC |
| Min. Cable Temp. Range, Moving | -25 Deg. |
| Min. Cable Temperature Range, Fixed Installation | -25 Deg. C |
| Min. Operating Temp. | -25 Deg. C |
| Min. Switching Voltage | 19.2V DC |
| Minimum Installation Distance (between Two Sensors) | 50 mm |
| Minimum Switching Distance | 0.5 mm |
| Mounting Type | Fastening Nut |
| Number Of Strands | 4 |
| Nut Material | PBT |
| Protection Class | Class III |
| Series Resistor | 22 Ohm |
| Shock Resistance | 30g/ 11ms |
| Structure | Two-Channel |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
| Thread Size | M30 x 37 mm |
| Torque For Nuts | 10 Nm |
| Vibration Resistance | 10 Hz to 55 Hz |
| Wire Cross Section | 0.25 sq. mm |
| Model | Actuation Frequency | Actuation Type | Assured Switch Off Distance | Assured Switching Distance | Cable Length | Cable Material | Cable Size | Cannot Be Mounted Flush | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 171V62AY | - | Front | 16 mm | 4 mm | - | - | - | Yes | - | RFQ
|
| 114270A0D | - | Front | 19 mm | 7 mm | - | - | - | - | - | RFQ
|
| 171V62VY | - | Front | 16 mm | 4 mm | - | - | - | Yes | - | RFQ
|
| 114270-5 | - | Front | 19 mm | 7 mm | 1 m | PVC | - | - | - | RFQ
|
| 153V62-10 | - | - | - | - | - | - | - | - | - | RFQ
|
| 165270-5 | - | - | - | - | 1 m | PVC | - | - | - | RFQ
|
| 120272-5 | - | Front | 22 mm | 4 mm | 1 m | PVC | - | - | - | RFQ
|
