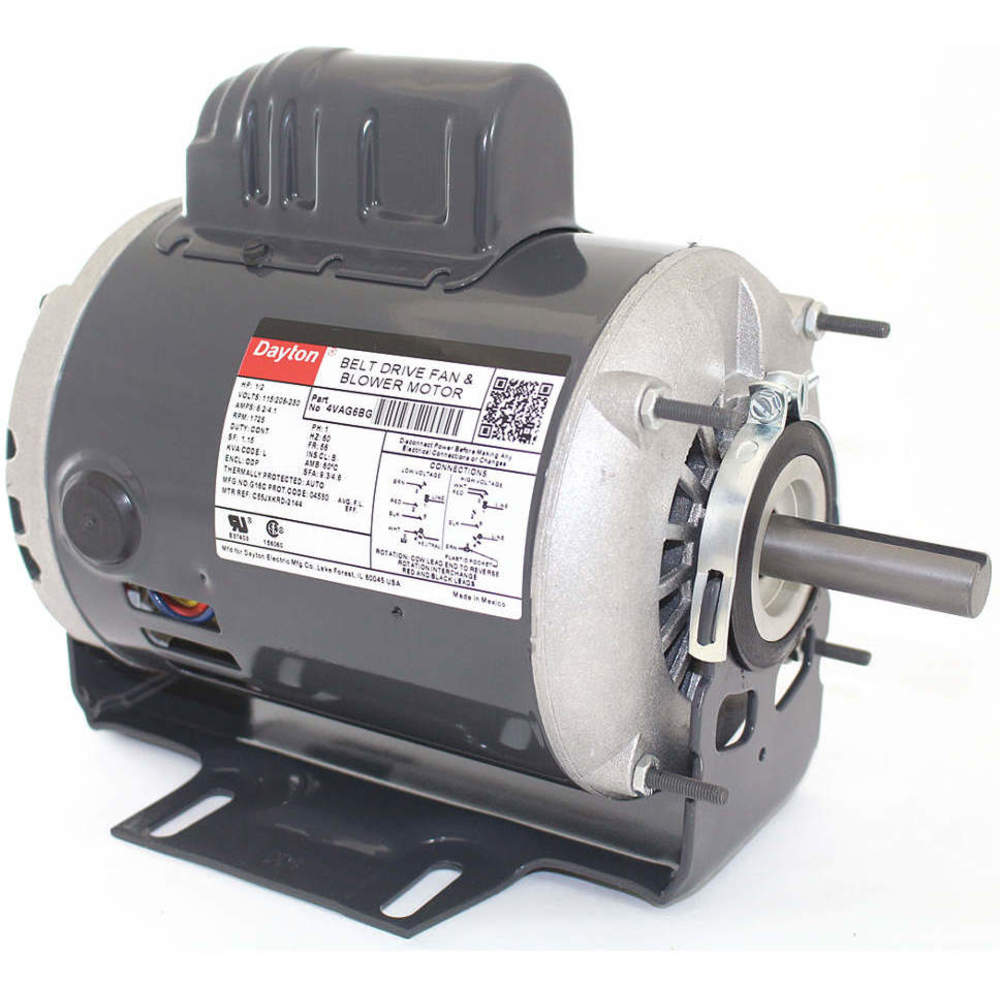

| Item | Belt Drive Motor |
| Bearings | Ball |
| Body Dia. | 5.625" |
| Duty | Continuous |
| Enclosure | Open Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.2/4.0-4.1 |
| Hp | 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 9.75" |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Dr Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor-Start |
| Mounting | Cradle |
| Nameplate Rpm | 1725 |
| Nominal Efficiency | 67.0% |
| Overall Length | 11.625" |
| Phase | 1 |
| Resilient Ring Dia. | 2.5" |
| Ring To Ring Center | 9.5" |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Stud Pattern | 3-5/8 x 3-5/8" |
| Thermal Protection | Auto |
| Voltage | 115/208-230 |
| Ship weight (kg) | 9.47 |
| Ship height (cm) | 28.19 |
| Ship length (cm) | 50.04 |
| Ship width (cm) | 28.96 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Bearings | Body Dia. | Frame | Frame Material | Full Load Amps | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGG3 | Ball | 5.625" | 56 | - | 7.2/3.6-3.6 | 1/2 | 60 | B | £399.82 | |
 |
1D170 | Ball | 5.625" | 56H | - | 11.6 | 3/4 | 60 | B | £386.88 | |
 |
24C180 | Ball | - | 56H | Steel | 7.7/3.7-3.8 | 1/2 | 60 | B | £383.03 | |
 |
24C181 | Ball | - | 56H | Steel | 9.8/5.2-5.0 | 3/4 | 60 | B | £425.90 | |
 |
24C182 | Ball | - | 56H | Steel | 14.8/7.7-7.4 | 1 | 60 | B | £448.63 | |
 |
3K199 | Ball | - | 56 | - | 7.7/3.8 & 9.1/4.6 | 1/2 | 50/60 | B | £467.18 | |
 |
3K617 | Ball | 5.625" | 56H | Steel | 11.6/5.9-5.8 | 3/4 | 60 | F | £398.45 |
