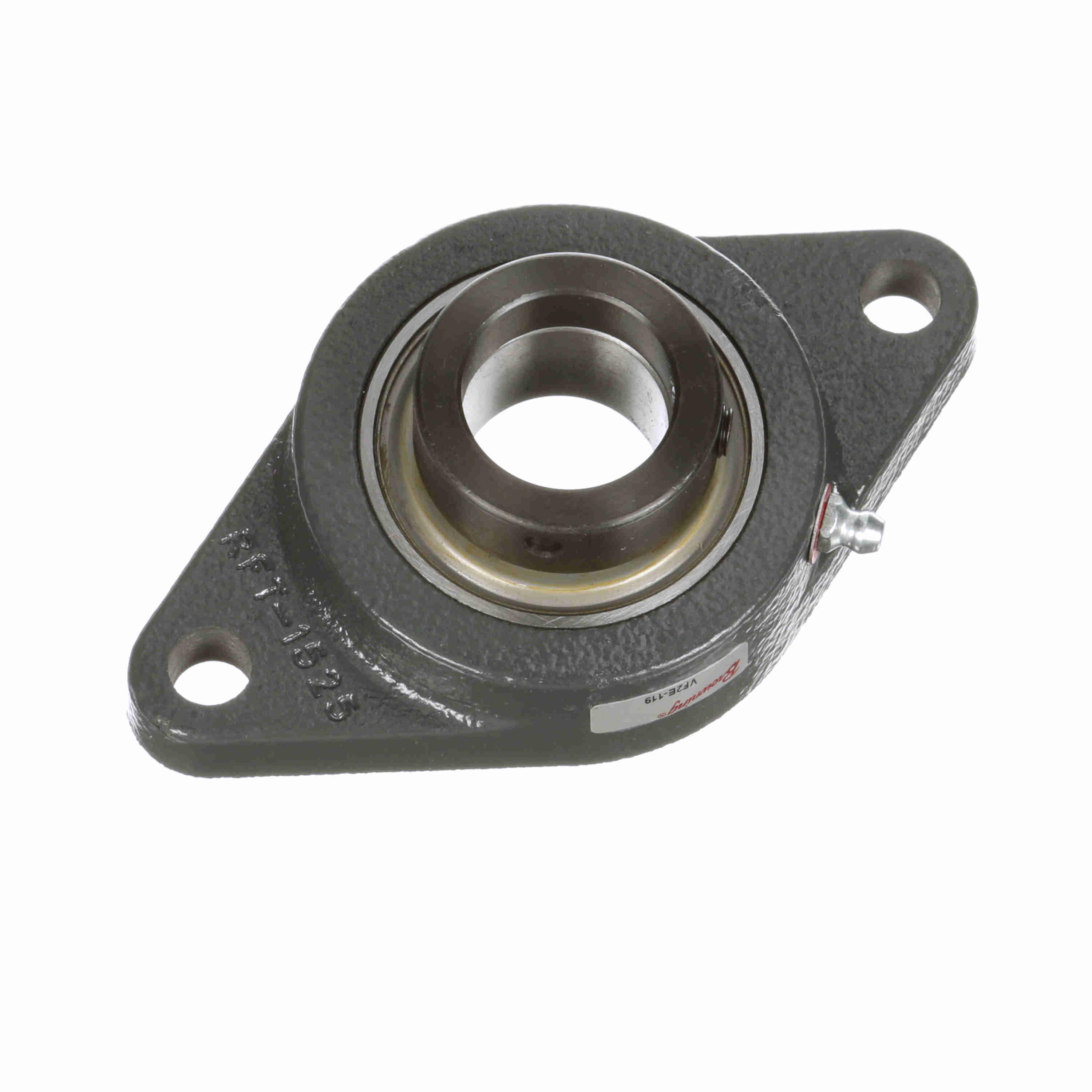

| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 4 19/32" |
| Bolt Spacing | 4.594" |
| Bore Dia. | 1 3/16" |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VE-119 |
| Length Through Bore | 1.422" |
| Locking Device | Eccentric Collar |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting | Yes |
| Mounting Bolts | 7/16" |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 4 3/5" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 1 47/64" |
| Overall Dia. | 3 1/8" |
| Overall Height | 5 9/16" |
| Overall Length | 3 1/8" |
| Pilot Configuration | No Pilot |
| Product Type | Intermediate Duty Non-Expansion |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2E 100 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.875 Kg |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 14.12 |
| Ship length (cm) | 7.95 |
| Ship width (cm) | 4.39 |
