| Accuracy | -1.5% to +1.5% |
| Accuracy Grade | Asme B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Temp. Range | -40°F to +200°F |
| Application | Autoclave, Industrial |
| Blowout Safety Back | No |
| Burst Pressure | 1600 psi |
| Calibration Certificate Included | No |
| Case Color | Stainless Steel |
| Case Construction | Welded |
| Case Depth | 1 1/4" |
| Case Dia. | 2 3/4" |
| Case Grade | Grade 304 |
| Cleaned For Oxygen Service | No |
| Clog Resistant | No |
| Dial Color | White |
| Diaphragm Seal Process Connection | Threaded |
| Diaphragm Seal Type | Welded |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Gauge Case Liquid | None |
| Includes | Mini Diaphragm Seal |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Lens Material | Polycarbonate |
| Mfr. Series | 1009, 310-315 |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Movement Type | Glass Filled Polyester Segment |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |

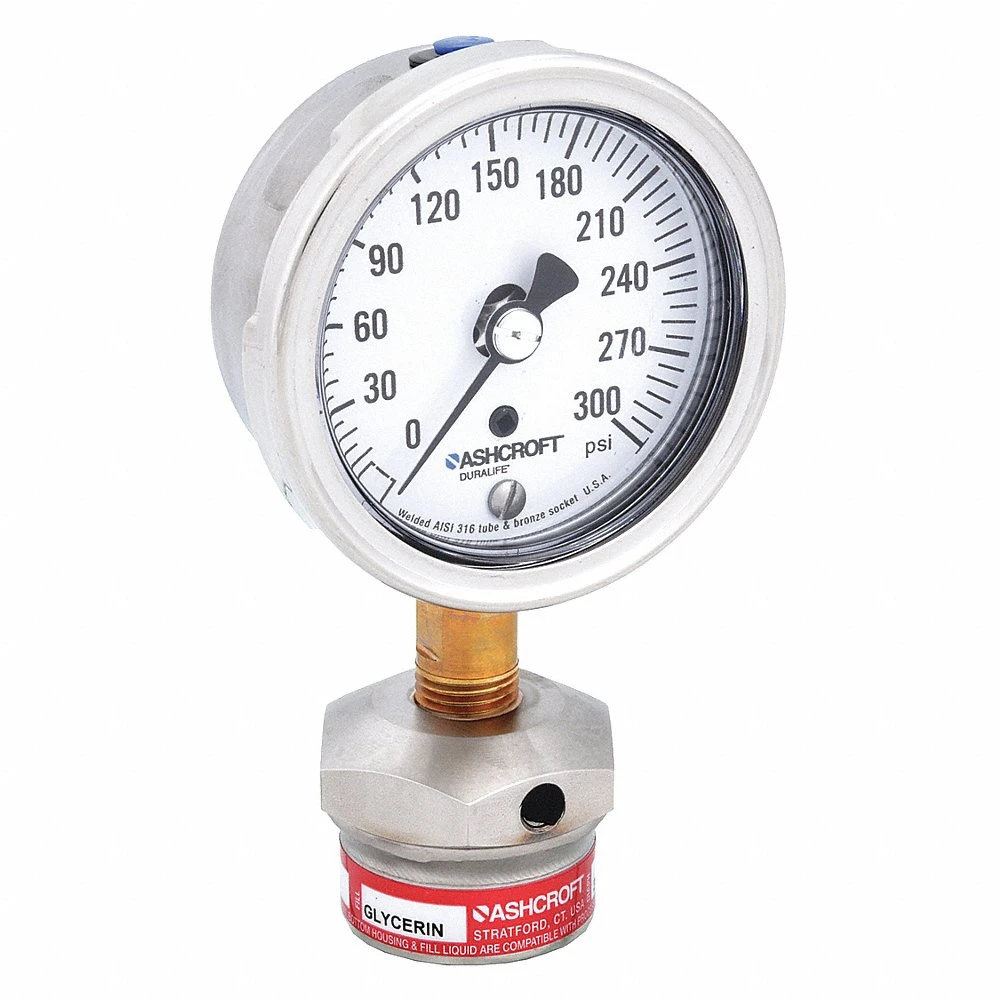

| Pressure Gauge Type | Industrial Pressure Gauge With Diaphragm Seal |
| Pressure Range | 0 psi to 300 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 5 |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | Npt |
| Process Temperature Range | -40°F to +250°F |
| Removable Bezel | No |
| Scale Type | Single |
| Seal Compatible Process Media | Water, Oil, Gases and Liquids |
| Seal Diaphragm Grade | Grade 316L |
| Seal Diaphragm Material | Stainless Steel |
| Seal External Grade | Grade 316L |
| Seal External Material | Stainless Steel |
| Seal Fill Liquid | Glycerin |
| Seal Lower Housing Grade | Grade 316L |
| Seal Lower Housing Material | Stainless Steel |
| Seal Maximum Working Pressure | 2500 psi |
| Seal Process Temperature Range | 0°F to +400°F |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Socket Material | Aluminum Bronze |
| Vibration Resistance | Field Fillable |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Aluminum Bronze, Stainless Steel |
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
451259SD04LXCYDJ30IMV&60#-04510SS50XDJ | Compound Gauge | £517.34 | |
 |
251009AW02L/310SSLXCG100 | Seal | £145.00 | |
 |
451259SD04L/50312SS04TXCG100# | Seal | £282.29 | |
 |
451259SD04L/50312HH04TXCF100# | Seal | £442.31 | |
 |
251009AW02L/310SSLXCG200 | Seal | £145.00 | |
 |
451259SD04L/50312SS04TXCG200# | Seal | £260.27 | |
 |
451259SD04L/50312HH04TXCF200# | Seal | £442.31 |
