HVAC Relays

Filter

APPROVED VENDOR -

Style	Model	Coil Volts	Depth	Height	HP	Switch Type	Width	Price (inc. VAT)
A	5MMA3	120	2-1/4"	2.25"	2	SPST	2.25"	£13.84
B	5MMA1	240	1-3/4"	2"	3/4	SPDT	2"	-	RFQ
A	5MMA4	240	2-1/4"	2.25"	2	SPST	2.25"	£8.34

Style	Model	Coil Volts	Price (inc. VAT)
A	5MMA5	24	£21.91
A	5MMA7	240	£10.08

Style	Model	Coil Volts	Switch Type	Price (inc. VAT)
A	6ACH5	24	DPST	£10.87
B	6ACH6	120	DPST	£10.86
C	6AZU0	120	DPDT	£10.87
D	6ACH4	208/240	SPDT	£9.74
E	6ACH7	208/240	DPST	£10.71
F	6AZU1	208/240	DPDT	£10.87

Style	Model	Coil Volts	Switch Type	Price (inc. VAT)
A	6ACJ2	120	SPNO/SPNC	£10.11
A	6ACJ3	208/240	SPNO/SPNC	£10.11
B	6ACJ0	277	SPNO	£10.11
C	6ACJ1	277	SPDT	£5.48

Style	Model	Price (inc. VAT)
A	RY-ES	£142.05
B	RY-PA	£35.31
C	RY-AC/A	£146.25
D	RY-1824L	£74.09

Style	Model	Current Drawn	Depth	Height	Type	Width	Price (inc. VAT)
A	SR501-4	Max 12 Amps	5-1/2"	4 13/16"	1 Zone	3"	£127.40
B	SR502-4	Max 15 Amps	7"	10.875"	2 Zone	3"	£271.56
C	SR503-4	Max 15 Amps	7"	10.875"	3 Zone	3"	£285.76
C	SR503-EXP-4	Max 15 Amps	7"	11"	3 Zone Expandable	3.25"	£344.01
D	SR501-EXP-4	Max 15 Amps	5-1/2"	4 13/16"	1 Zone Expandable	3"	£221.67
E	SR504-4	Max 20 Amps	7"	10.875"	4 Zone	3"	£376.43
C	SR504-EXP-4	Max 20 Amps	7"	11"	4 Zone Expandable	3.25"	£374.71
F	SR506-4	Max 20 Amps	7-5/8"	12.38"	6 Zone	3"	£436.62
G	SR506-EXP-4	Max 20 Amps	8"	12.75"	6 Zone Expandable	3.25"	£412.67

Style	Model	Switch Type	Price (inc. VAT)
A	R8222D1014	DPDT	£43.01
B	R8222B1067	SPDT	£39.77

Style	Model	Coil Volts	Price (inc. VAT)
A	MHGXEC85GGS	-	£163.67
B	MH5RTA813G	-	£491.16
C	211-100-2639	-	£87.52
C	211-100-2004	-	£87.52
D	784XDXM4L-120A	-	£36.11
E	DAP0019P	-	£106.80
C	MH4ECX226G	-	£200.42
F	1EGW8	6 VAC	£25.39
F	1EGW9	6 VDC	£25.39

Style	Model	Construction	Control Range	Depth	Diameter	Pressure Range	Price (inc. VAT)
A	RP970A1008	-	-	-	-	-	£266.32
B	RP419A1057	-	-	-	-	-	£487.24
C	RP670A1001	-	-	-	-	-	£272.85
D	RP670B1017	-	-	-	-	-	£555.16
E	RP819B1002	-	-	-	-	-	£556.95
B	RP419A1107	-	-	-	-	-	£361.71
B	RP419B1071	-	-	-	-	-	£361.71
F	RP471A1002	-	-	-	-	-	£356.18
G	RP470A1003	Molded Plastic	0 to 18 psi	1"	1 1/2	0 to 18 psi	£159.55
H	RP972A1006	Neoprene Diaphragms, Stainless Steel Valve Seats	18 psi Main, 3 to 15 psi Pilot	2-1/4"	1.5	Main 18 psi / Pilot 3 to 15 psi	£226.73

Style	Model	Type	Price (inc. VAT)
A	002474	-	£29.62
B	217092	115V	£139.37
B	217093	230V	£228.26

Style	Model	HP @ 120V	Base Type	Coil VA Rating	HP @ 240V	Mounting	Pins	Push To Test	Socket	Price (inc. VAT)
A	8501KPDR12V51	-	Octal	4.5	-	Octal Plug In Socket	8	No	Mfr. No. 8501NR51 or 8501NR52	£89.63
B	8501RSD34V53	-	Square	-	-	Side Flange	14	No	Mfr. No. 8501NR45	£104.85
C	8501RS34V20	-	Square	-	-	Side Flange	14	No	Mfr. No. 8501NR45	£104.85
D	8501KPR12V24	-	Octal	2.5	-	Octal Plug In Socket	8	No	Mfr. No. 8501NR51 or 8501NR52	£89.63
E	8501RS44V20	-	Square	-	-	Side Flange	14	No	Mfr. No. 8501NR34	£95.45
E	8501RSD44V53	-	Square	-	-	Side Flange	14	No	Mfr. No. 8501NR34	£95.45
F	8501KUDR13V53	1/3	Square	-	1/2	Side Flange	11	No	Mfr. No. 8501NR82	£49.84
G	8501RS41V14	1/3	Square	-	1/3	Side Flange	5	Manual	Mfr. No. 8501NR41	£62.25
F	8501KUR12V20	1/3	Square	-	1/2	Side Flange	8	No	Mfr. No. 8501NR82	£53.52
H	8501RS42V20	1/3	Square	-	-	Side Flange	8	Manual	Mfr. No. 8501NR42	£77.53
G	8501RSD41V53	1/3	Square	-	-	Side Flange	5	Manual	Mfr. No. 8501NR41	£62.25
F	8501KUDR12V53	1/3	Square	-	1/2	Side Flange	8	No	Mfr. No. 8501NR82	£53.52
H	8501RS42V14	1/3	Square	-	1/3	Side Flange	8	Manual	Mfr. No. 8501NR42	£77.53
G	8501RS41V20	1/3	Square	-	1/3	Side Flange	5	Manual	Mfr. No. 8501NR41	£62.25
F	8501KUR13V14	1/3	Square	-	1/2	Side Flange	11	No	Mfr. No. 8501NR82	£49.84
I	8501RS14V20	1/6	Square	-	1/6	Side Flange	14	No	Mfr. No. 8501NR45	£70.43
J	8501RSD14V53	1/6	Square	-	-	Side Flange	14	No	Mfr. No. 8501NR45	£64.40

Style	Model	Depth	Height	Mounting	Switch Type	Type	Width	Price (inc. VAT)
A	R8845U1003	-	-	-	-	-	-	£163.05
B	RA89A1074	2-5/16"	5.25"	Universal	SPST	Conduit/Unit Mount (Hydronic Application)	4.25"	£170.00
C	RA889A1001	3-1/2"	6.25"	Universal	1 SPDT plus 1 Powerpile SPST	Conduit/Unit Mount (Hydronic Application)	4.437"	£147.86
D	R8285A1048	4"	1"	4 x 4" Junction Box	SPDT	4X4 Junction Box Mount	4"	£92.09

Style	Model	Mounting	Switch Type	Price (inc. VAT)
A	18F255	Foot	DPST	£31.14
B	5MLZ9	Universal	SPDT	£15.31

Style	Model	Depth	Height	Switch Type	Type	Width	Price (inc. VAT)
A	90-370	-	-	-	-	-	£18.81
B	90-340	1-7/8"	2.25"	DPDT	AC Switching	568659"	£19.06
C	90-380	2-2/3"	1.5"	SPNO/SPNC	Enclosed Fan Relay (Heavy-Duty)	568569"	£20.83

Style	Model	Switch Type	Price (inc. VAT)
A	6AZH6	DPDT	£27.39
B	6AZH5	SPDT	£27.39
C	6AZH4	SPNO/SPNC	£27.39

Style	Model	Price (inc. VAT)
A	HV357007700G	£16.46
A	137785	£240.29
A	HV357011200G	£209.72
A	HV357003600G	£209.72
B	5018-0007-000	£49.87

Style	Model	Coil Volts	Switch Type	Price (inc. VAT)
A	6AZU2	24	SPNO	£11.72
B	6AZU3	24	SPNO/SPNC	£10.11
C	6AZU4	24	SPDT	£15.05
D	6ACH8	120	SPNO	£10.11
C	6AZU5	120	SPDT	£10.11
C	6AZU6	208/240	SPDT	£10.11

Style	Model	Switch Type	Price (inc. VAT)
A	90-112	DPDT	£52.36
B	90-113	SPDT	£43.51

Style	Model	Coil Volts	Electrical Connection	Item	Price (inc. VAT)
A	LA4SKE1E	-	-	Relay	£36.86
B	AK-42309-500	-	-	Relay	£446.10
C	LA4DA2U	-	-	Relay	£46.82
D	LA4KE1UG	-	-	Relay	£17.63
D	LA4DB3B	-	-	Relay	£54.21
E	2372-351	-	-	Relay	£220.18
F	LA4DA2E	-	-	Relay	£47.11
G	LA4DC3U	-	-	Relay	£45.82
H	RM35HZ21FM	-	-	Relay	£430.47
I	50-1289	-	-	Enclosure	£15.90
J	RM35UB330	-	-	Accessory	£393.32
K	RM17TG20	-	-	Accessory	£231.87
D	LA4SKE1U	-	-	Relay	£34.95
L	2360-501	-	-	Relay	£311.74
D	LA4DA2G	-	-	Relay	£45.62
M	RE17LLBM	24 to 240 VAC	Screw	Relay	£120.08
N	REXL2TMB7	24 VAC	Socket	Relay	£84.11

Style	Model	Item	Price (inc. VAT)
A	179C933G01	NEMA Control Relay	£746.66	RFQ
B	766A440G01	NEMA Control Relay	£644.57	RFQ
C	PSG240E24RM	Relay	£646.18
D	EMT6	Relay	£637.54	RFQ
D	EMT6(230V)	Relay	£637.54	RFQ
E	EMT6-DB	Relay	£939.61	RFQ
E	EMT6-DB(230V)	Relay	£939.61	RFQ
E	EMT6-K	Relay	£516.43	RFQ
E	EMT6-DBK	Relay	£1,089.94	RFQ

Magnetic Relay Switching 24v Coil

Model	Item	Price (inc. VAT)
6AZT9	AE7XBH	£15.25

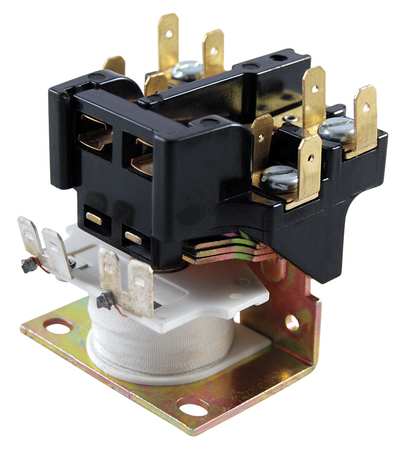

HVAC Relays

HVAC relays are used for managing fans, blowers, motors up to 1-1/2HP, tools and other electrical devices within specified ratings. Raptor Supplies offers a huge variety of HVAC relays from brands like Honeywell, Steveco, Taco and White-Rodgers. These HVAC systems typically control the flow of current between a power source and a motor. They commonly use an electromagnet (coil) to operate the internal mechanical switching mechanism (contacts). Choose from a range of these HVAC relays, available in 1.5, 1/2, 1/3 HP Per Zone and 2 HP options.
